Standard Din Rail strömförsörjning inkluderar flera utspänningar och effektutgångar.
Säkerhetscertifieringar inkluderar IEC/EN/ES 60601-1 och IEC/EN/UL 62368-1 med UK CA- och CE-märkning för lågspännings-, EMC- och RoHS-direktiven. Enheterna överensstämmer även med EN 55011-B och EN 55032-B ledda och utstrålade emissioner och uppfyller immunitetsstandarderna IEC60601-1-2 Edition 4 och IEC 61000-4. De är designade för att uppfylla kraven i EN60335-1 och IEC61010-1.
Typiska tillämpningar inkluderar medicinsk, hemsjukvård, tandvård, test och mätning, sändning, professionell ljud- och industriell utrustning.
-

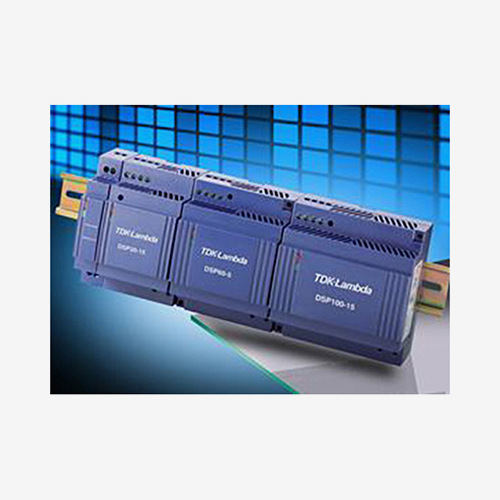

DSP10-5
Output Power (W):
10
Input Voltage VAC:
90 – 264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
DSP10-12
Output Power (W):
10
Input Voltage VAC:
90 – 264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
DSP10-15
Output Power (W):
10
Input Voltage VAC:
90 – 264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
DSP10-24
Output Power (W):
10
Input Voltage VAC:
90 – 264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-

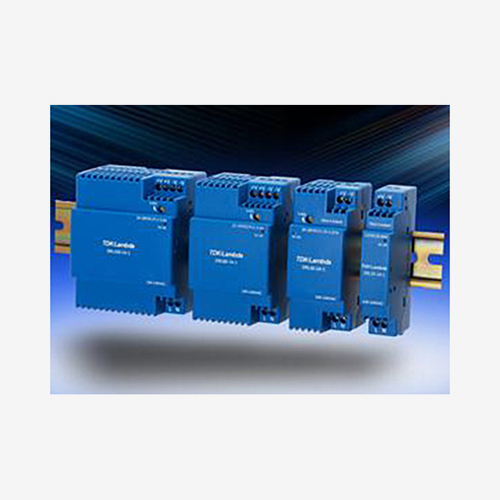

DRL-10-12-1
Output Power (W):
10
Input Voltage VAC:
85 – 264 VAC
Input Voltage VDC:
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-20 to 70°C
Application:
Industrial
Status:
-
DRL-10-24-1
Output Power (W):
10
Input Voltage VAC:
85 – 264 VAC
Input Voltage VDC:
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-20 to 70°C
Application:
Industrial
Status:
-
AKF-15S05C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S12C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S15C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S24C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S48C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
48
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15D12C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
-12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15D15C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
-15
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15D512C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15T512CAC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
12
Output Voltage VDC 3:
-12
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15T515C AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
15
Output Voltage VDC 3:
-15
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S05CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S12CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S15CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S24CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15S48CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
48
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15D12CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
-12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AKF-15D15CICE AC-DIN-01
Output Power (W):
15
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
-15
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-

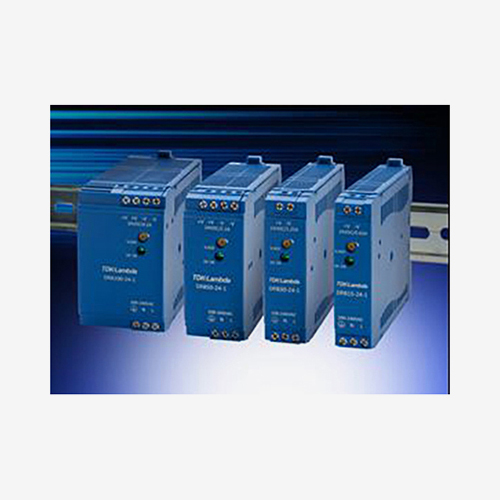

DRB-15-24-1
Output Power (W):
15
Input Voltage VAC:
85 – 264 VAC
Input Voltage VDC:
120 – 373 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-20 to 70°C
Application:
Industrial
Status:
-
DPP-15-24
Output Power (W):
15
Input Voltage VAC:
85 – 264 VAC
Input Voltage VDC:
90 – 375 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-10 to 70°C
Application:
Industrial
Status:
-
NPSM20-5
Output Power (W):
20
Input Voltage VAC:
90 -264 VAC
Input Voltage VDC:
110 – 345 VDC
Output Voltage VDC 1:
5V
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Industrial
Status:
-
NPSM20-12
Output Power (W):
20
Input Voltage VAC:
90 -264 VAC
Input Voltage VDC:
110 – 345 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Industrial
Status:
-
NPSM20-24
Output Power (W):
20
Input Voltage VAC:
90 -264 VAC
Input Voltage VDC:
110 – 345 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Industrial
Status:
-
AJM-24S05C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24S09C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
9
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24S12C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24S15C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24S24C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24D12C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
-12
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
AJM-24D15C AC-DIN-01
Output Power (W):
24
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
-15
Output Voltage VDC 3:
Temperature Range:
-40 to 80°C
Application:
Medical
Status:
-
NPSW25-12 (S)
Output Power (W):
25
Input Voltage VAC:
90 -550 VAC
Input Voltage VDC:
150 – 725 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Harsh environments, Renewable energy system, High voltage DC BUS
Status:
-
NPSW25-24 (S)
Output Power (W):
25
Input Voltage VAC:
90 -550 VAC
Input Voltage VDC:
150 – 725 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Harsh environments, Renewable energy system, High voltage DC BUS
Status:
-
NPSW25-48 (S)
Output Power (W):
25
Input Voltage VAC:
90 -550 VAC
Input Voltage VDC:
150 – 725 VDC
Output Voltage VDC 1:
48
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Harsh environments, Renewable energy system, High voltage DC BUS
Status:
-
DPP-25-5
Output Power (W):
25
Input Voltage VAC:
85 – 264 VAC
Input Voltage VDC:
90 – 375 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-10 to 70°C
Application:
Industrial
Status:
-

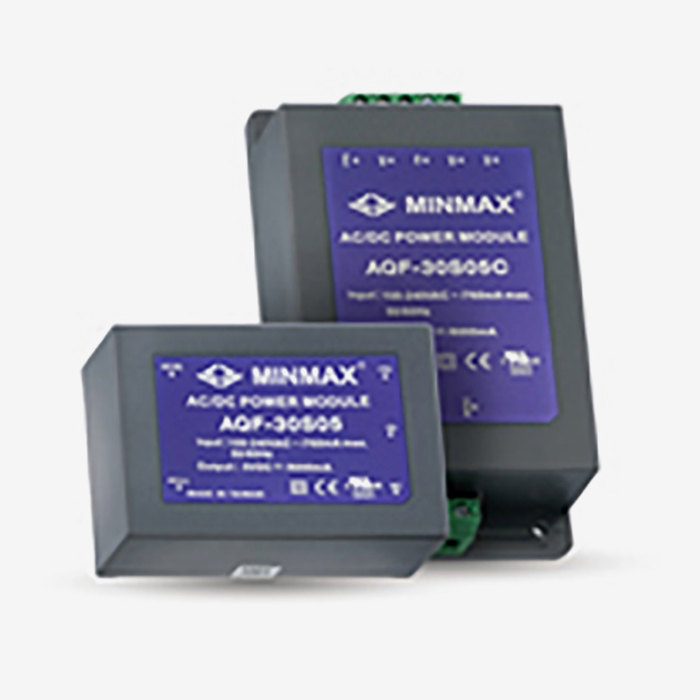

AQF-30S05C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S12C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S15C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S24C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S48C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
48
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30D12C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
-12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30D15C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
-15
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30D512C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30T512C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
12
Output Voltage VDC 3:
-12
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30T512AC AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
12
Output Voltage VDC 3:
-12
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30T515C AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
15
Output Voltage VDC 3:
-15
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30T5312PC AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
3.3
Output Voltage VDC 3:
12
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30T3512PC AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
3.3
Output Voltage VDC 2:
5
Output Voltage VDC 3:
12
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S05CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
5
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S12CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S15CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S24CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
24
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30S48CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
48
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30D12CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
-12
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
AQF-30D15CICE AC-DIN-02
Output Power (W):
30
Input Voltage VAC:
85-264 VAC
Input Voltage VDC:
120 – 370 VDC
Output Voltage VDC 1:
15
Output Voltage VDC 2:
-15
Output Voltage VDC 3:
Temperature Range:
-25 to 70°C
Application:
Industrial
Status:
-
NPSM30S-12
Output Power (W):
30
Input Voltage VAC:
90 -264 VAC
Input Voltage VDC:
110 – 345 VDC
Output Voltage VDC 1:
12
Output Voltage VDC 2:
Output Voltage VDC 3:
Temperature Range:
-40 to 70°C
Application:
Industrial
Status:
