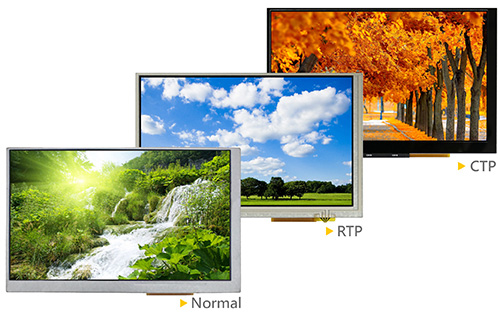

Standard TFT-LCD display modules are available in various sizes from 1.77″ to 10.4′ TFT LCD, such as 2.4″ TFT display, 2.8″, 3.5″ TFT display, 4.3″ TFT display, 5 inch display, 7″ LCD display. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.
TFT displays are available in various graphic display resolutions including QVGA (320 x 240), WQVGA (480×272), VGA (640×480), WVGA (800×480), 640×320, 1024×600, XGA (1024×768) and WXGA(1280×800). Many of Winstar TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.
Fler Standard TFT displayer finns i sortimentet än vad du ser här Kontakta oss
-
WF18FTLAADNN0
Size (inch):
1.77
Active Area (mm):
28.03×35.04
Resolution:
128×160
Outline Dimension (mm):
34×45.83
Interface:
MCU -
WF18GTLAADNN0
Size (inch):
1.77
Active Area (mm):
28.03×35.04
Resolution:
128×160
Outline Dimension (mm):
34×45.83
Interface:
SPI -
WF24HTLAJDNN0
Size (inch):
2.4
Active Area (mm):
36.72×48.96
Resolution:
240×320
Outline Dimension (mm):
42.72×60.26
Interface:
MCU -
WF24MTLAJDNN0
Size (inch):
2.4
Active Area (mm):
36.72×48.96
Resolution:
240×320
Outline Dimension (mm):
42.72×60.26
Interface:
SPI -
WF24MTLAJDNT0
Size (inch):
2.4
Active Area (mm):
36.72×48.96
Resolution:
240×320
Outline Dimension (mm):
42.72×60.26
Interface:
SPI -
13-024QICB0GA1-S
Size (inch):
2.4
Active Area (mm):
36.72×48.96
Resolution:
240×320
Outline Dimension (mm):
42.72×60.26×2.45
Interface:
MCU -
WF28ETLAJDNN0
Size (inch):
2.8
Active Area (mm):
43.2×57.6
Resolution:
240×320
Outline Dimension (mm):
50×69.2
Interface:
MCU -
WF28ETLAJDNT0
Size (inch):
2.8
Active Area (mm):
43.2×57.6
Resolution:
240×320
Outline Dimension (mm):
50×69.2
Interface:
MCU -
WF28KTLAJDNT0
Size (inch):
2.8
Active Area (mm):
43.2×57.6
Resolution:
240×320
Outline Dimension (mm):
50×69.2
Interface:
SPI -
13-028QITB0GA0-TR
Size (inch):
2.8
Active Area (mm):
43.2×57.6
Resolution:
240×320
Outline Dimension (mm):
47.7×67.95×2.6
Interface:
MCU -
WF32DTLAJDNN0
Size (inch):
3.2
Active Area (mm):
48.6×64.8
Resolution:
240×320
Outline Dimension (mm):
55.04×77.6
Interface:
8080,SPI,MCU -
WF32DTLAJDNT0
Size (inch):
3.2
Active Area (mm):
48.6×64.8
Resolution:
240×320
Outline Dimension (mm):
55.04×77.6
Interface:
8080,SPI,MCU -
LC035LA0NA
Size (inch):
3.5
Active Area (mm):
70.08 x 52.56
Resolution:
320 x x 240
Outline Dimension (mm):
92 x 67
Interface:
USB -
LC035LA0RA
Size (inch):
3.5
Active Area (mm):
70.08 x 52.56
Resolution:
320 x x 240
Outline Dimension (mm):
92 x 67
Interface:
USB -
LC035LA0NB
Size (inch):
3.5
Active Area (mm):
70.08 x 52.56
Resolution:
322 x x 240
Outline Dimension (mm):
92 x 67
Interface:
RS-232C -
LC035LA0RB
Size (inch):
3.5
Active Area (mm):
70.08 x 52.56
Resolution:
323 x x 240
Outline Dimension (mm):
92 x 67
Interface:
RS-232C -
WF35LTIACDNN0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.9×63.9
Interface:
RGB -
WF35LTIACDNT0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.9×63.9
Interface:
RGB -
WF35LTIACDNG0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.84×63.84
Interface:
RGB -
WF35LTZACDNN0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.84×63.84
Interface:
RGB -
WF35RTIACDNNB
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.84×63.84
Interface:
SPI,MCU,RGB -
WF35YTIACDNN0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.84×63.84
Interface:
RGB -
WF35YTIACDNT0
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.84×63.84
Interface:
RGB -
13-035QISB0GA2-S
Size (inch):
3.5
Active Area (mm):
70.08×52.56
Resolution:
320×240
Outline Dimension (mm):
76.9×63.9×3.3
Interface:
TTL -
LC043LA0NA
Size (inch):
4.3
Active Area (mm):
95.04 x 53.85
Resolution:
480 x x 272
Outline Dimension (mm):
120 x 70
Interface:
USB -
LC043LA0RA
Size (inch):
4.3
Active Area (mm):
95.04 x 53.85
Resolution:
480 x x 272
Outline Dimension (mm):
120 x 70
Interface:
USB -
LC043LA0NB
Size (inch):
4.3
Active Area (mm):
95.04 x 53.85
Resolution:
480 x x 272
Outline Dimension (mm):
120 x 70
Interface:
RS-232C -
LC043LA0RB
Size (inch):
4.3
Active Area (mm):
95.04 x 53.85
Resolution:
480 x x 272
Outline Dimension (mm):
120 x 70
Interface:
RS-232C -
WF43GTIAEDNN0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -
WF43GTIAEDNT0
Size (inch):
4.3
Active Area (mm):
95.04×53.86
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

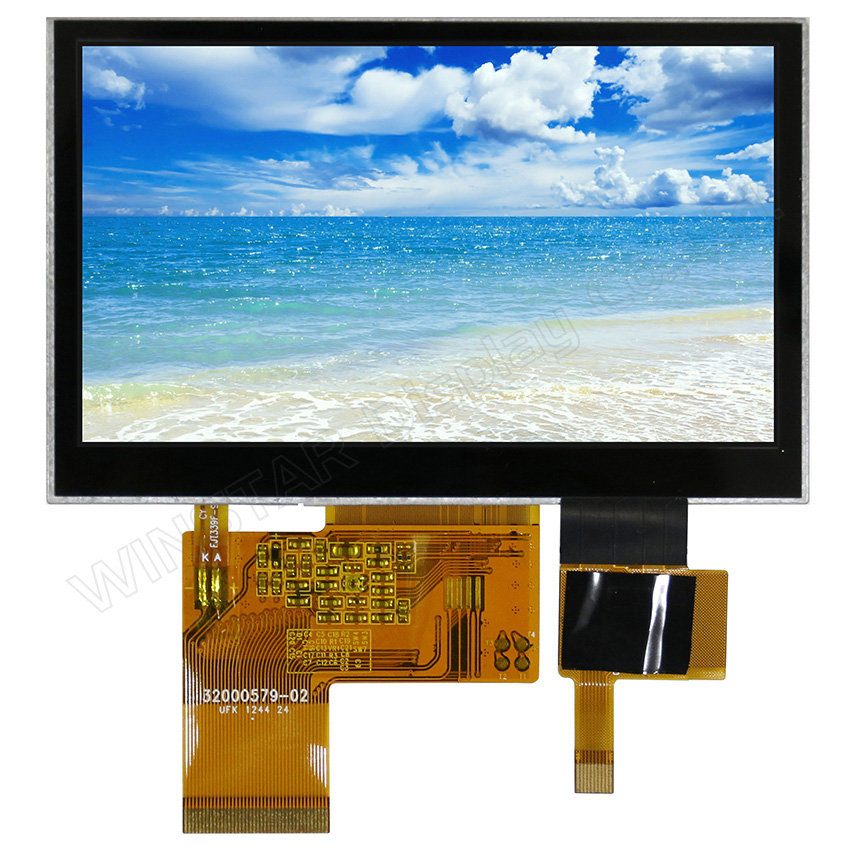

WF43GTIAEDNGD
Size (inch):
4.3
Active Area (mm):
95.04×53.86
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

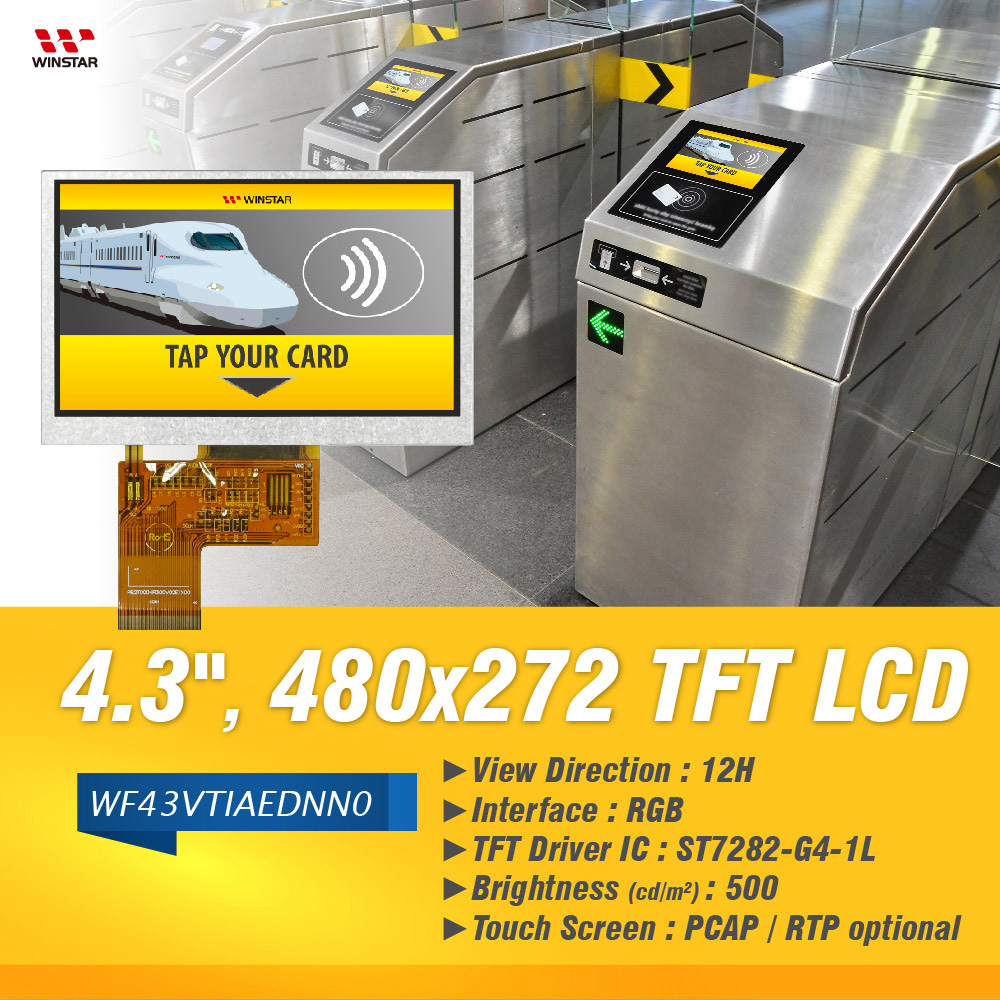

WF43VTIAEDNN0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

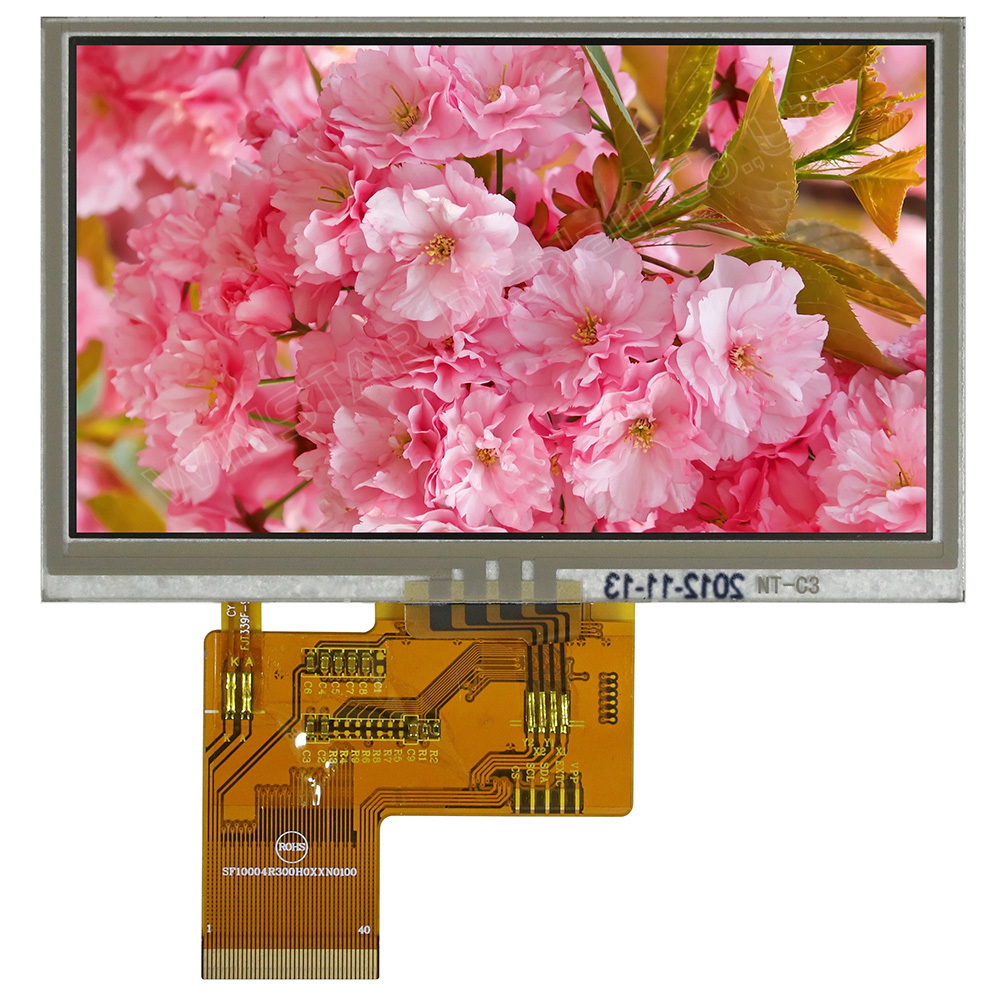

WF43VTIAEDNT0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

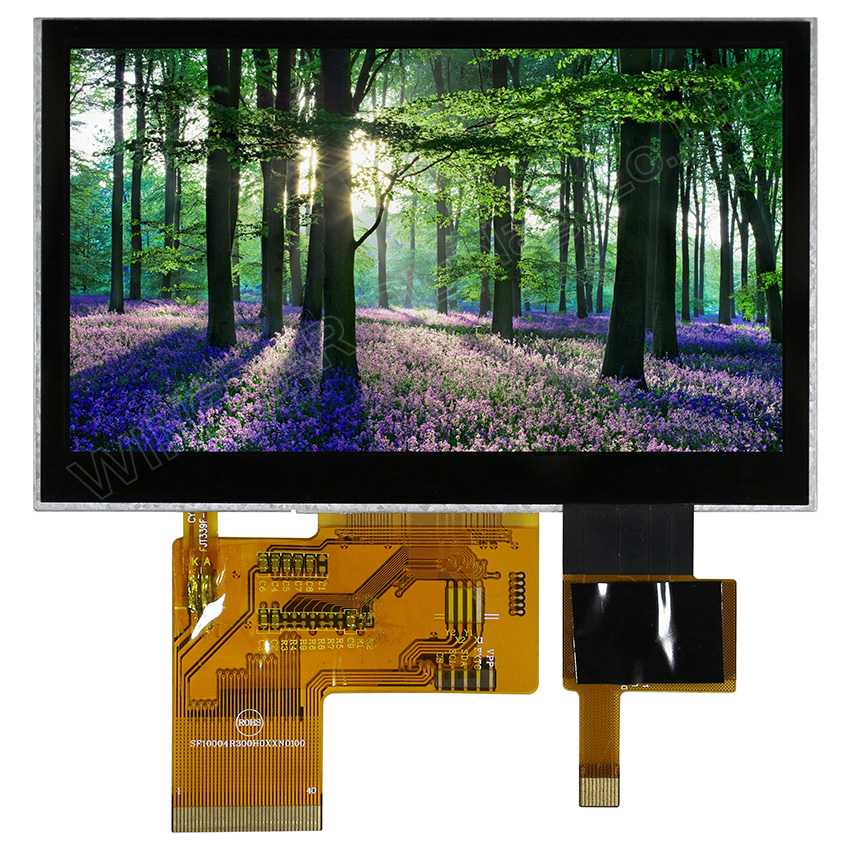

WF43VTIAEDNGA
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

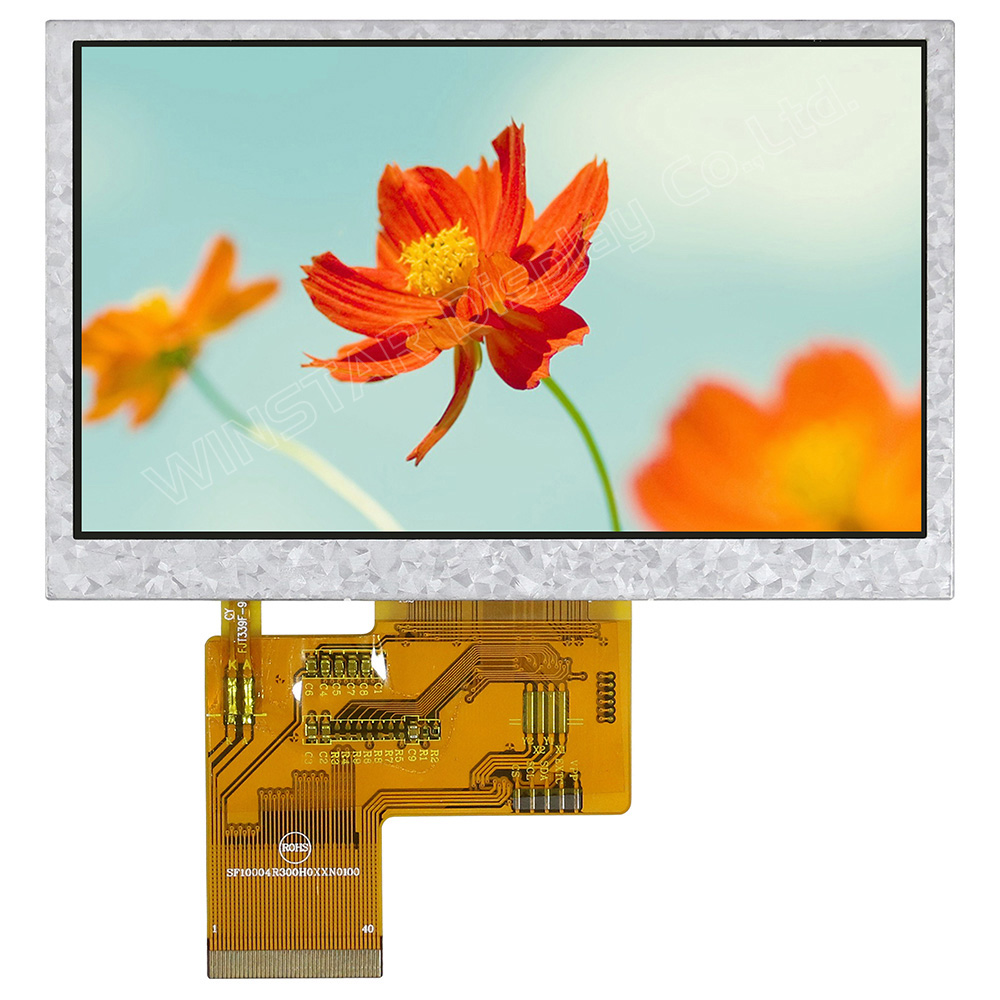

WF43VTZAEDNN0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

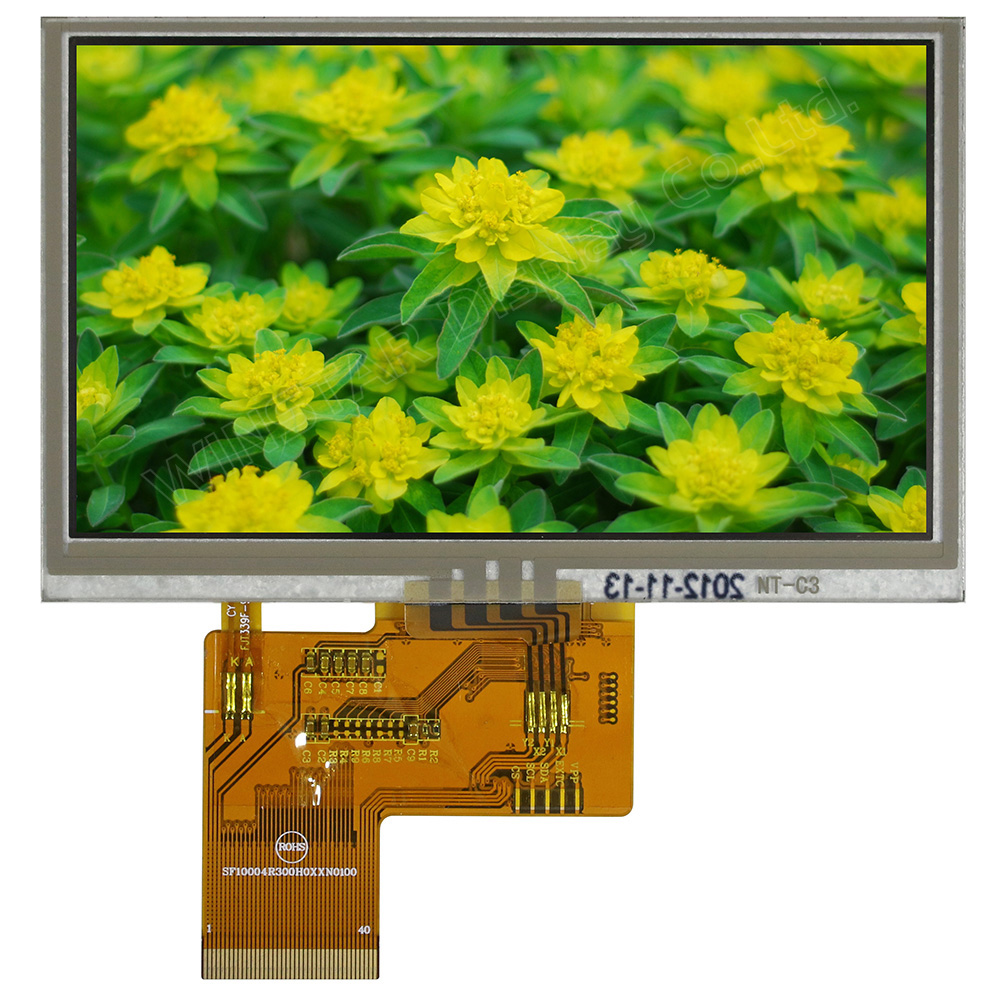

WF43VTZAEDNT0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -
WF43VTZAEDNGA
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

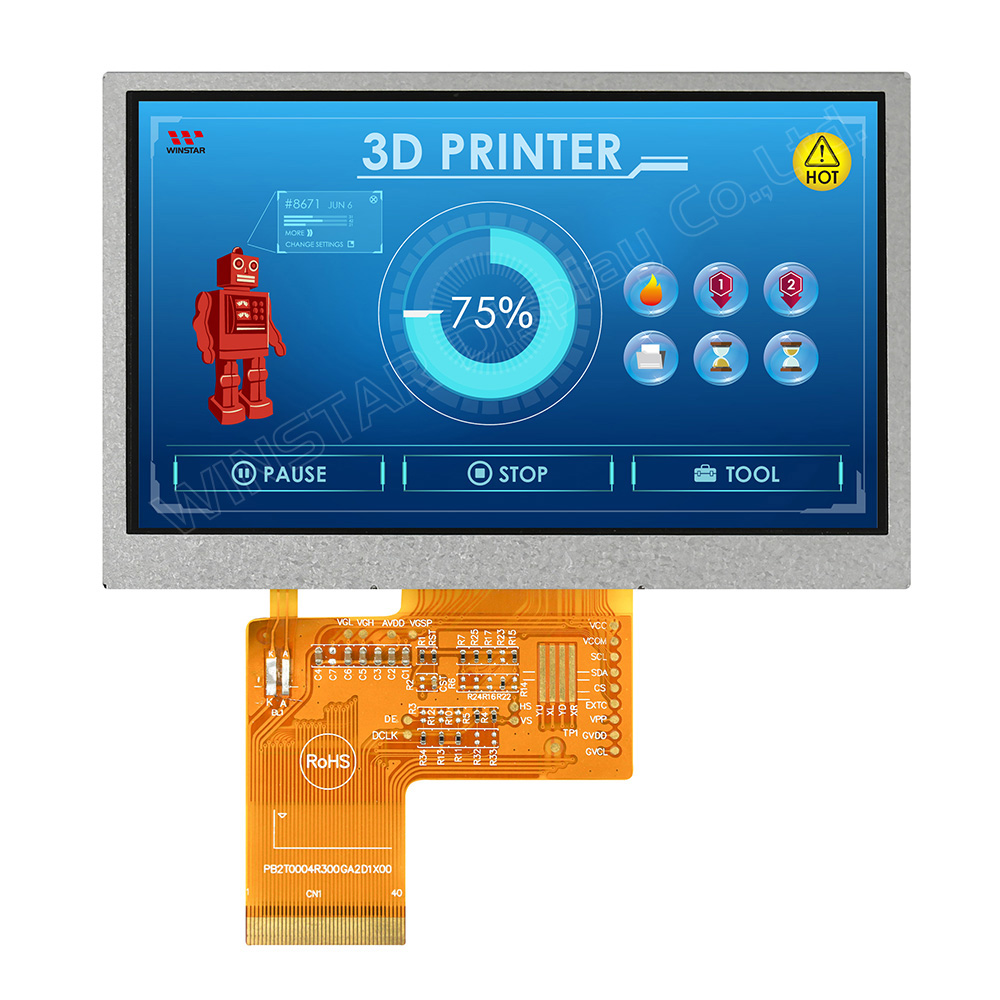

WF43UTIAEDNN0
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.4×67.1
Interface:
RGB -

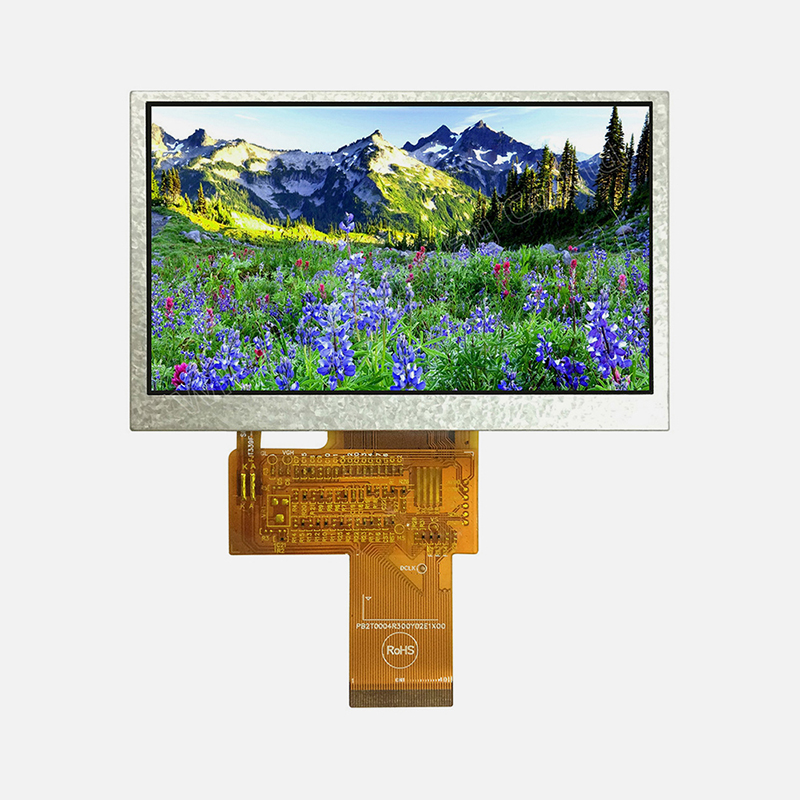

WF43YTIAEDNN0
Size (inch):
4.3
Active Area (mm):
95.04×53.86
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

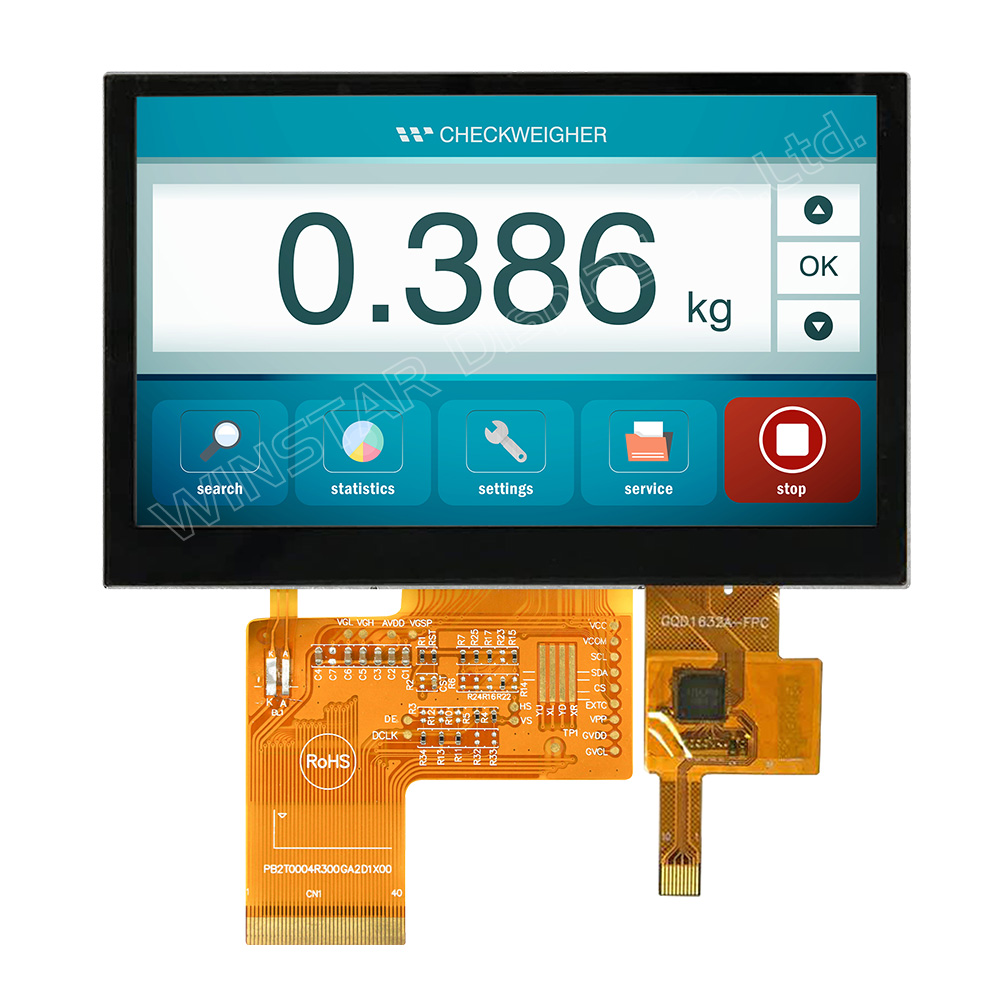

WF43UTIAEDNGB
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.4×67.2
Interface:
RGB -
WF43YTIAEDNT0
Size (inch):
4.3
Active Area (mm):
95.04×53.86
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2
Interface:
RGB -

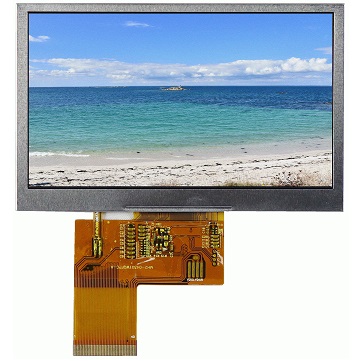

13-043YISB0GA1-S
Size (inch):
4.3
Active Area (mm):
95.04×53.856
Resolution:
480×272
Outline Dimension (mm):
105.5×67.2×2.9
Interface:
TTL -

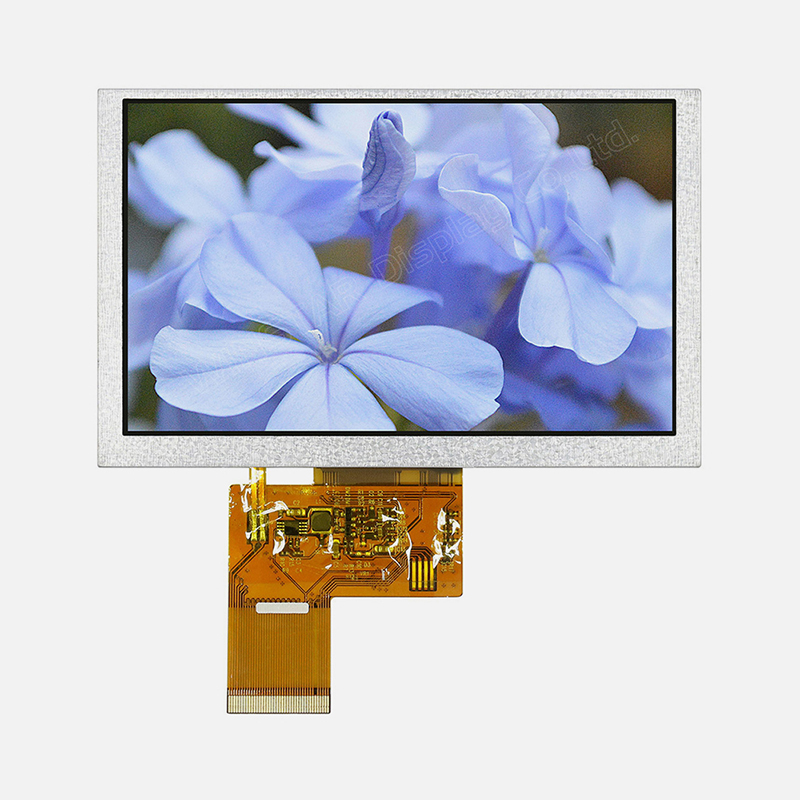

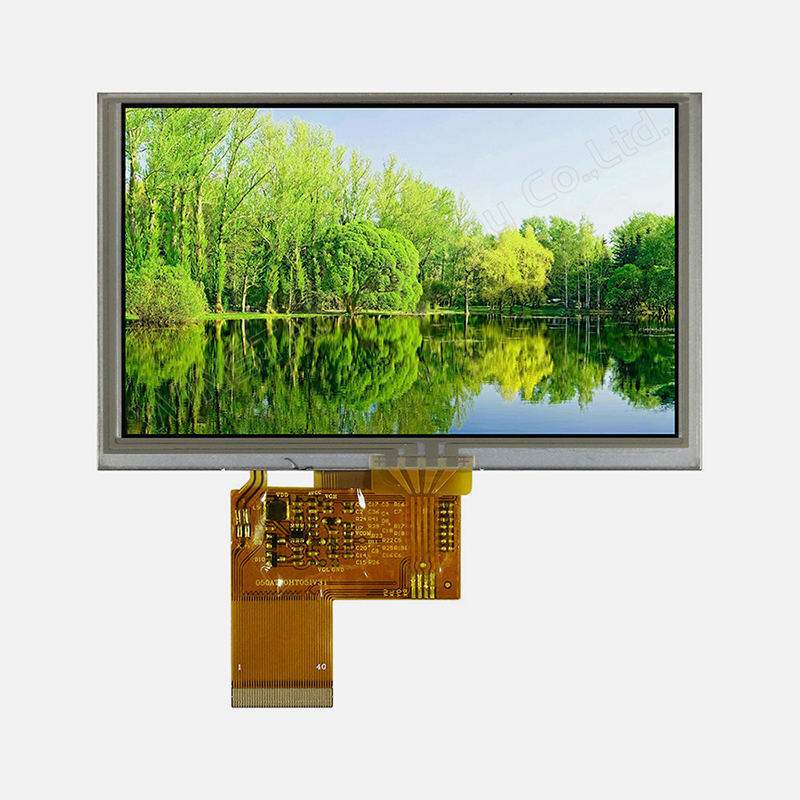

WF50BTIAGDNN0
Size (inch):
5
Active Area (mm):
108×64.8
Resolution:
800×480
Outline Dimension (mm):
120.7×75.8
Interface:
RGB -
WF50BTIAGDNT0
Size (inch):
5
Active Area (mm):
108×64.8
Resolution:
800×480
Outline Dimension (mm):
120.7×75.8
Interface:
RGB -
WF50BTIAGDNGD
Size (inch):
5
Active Area (mm):
108×64.8
Resolution:
800×480
Outline Dimension (mm):
120.7×75.8
Interface:
RGB -

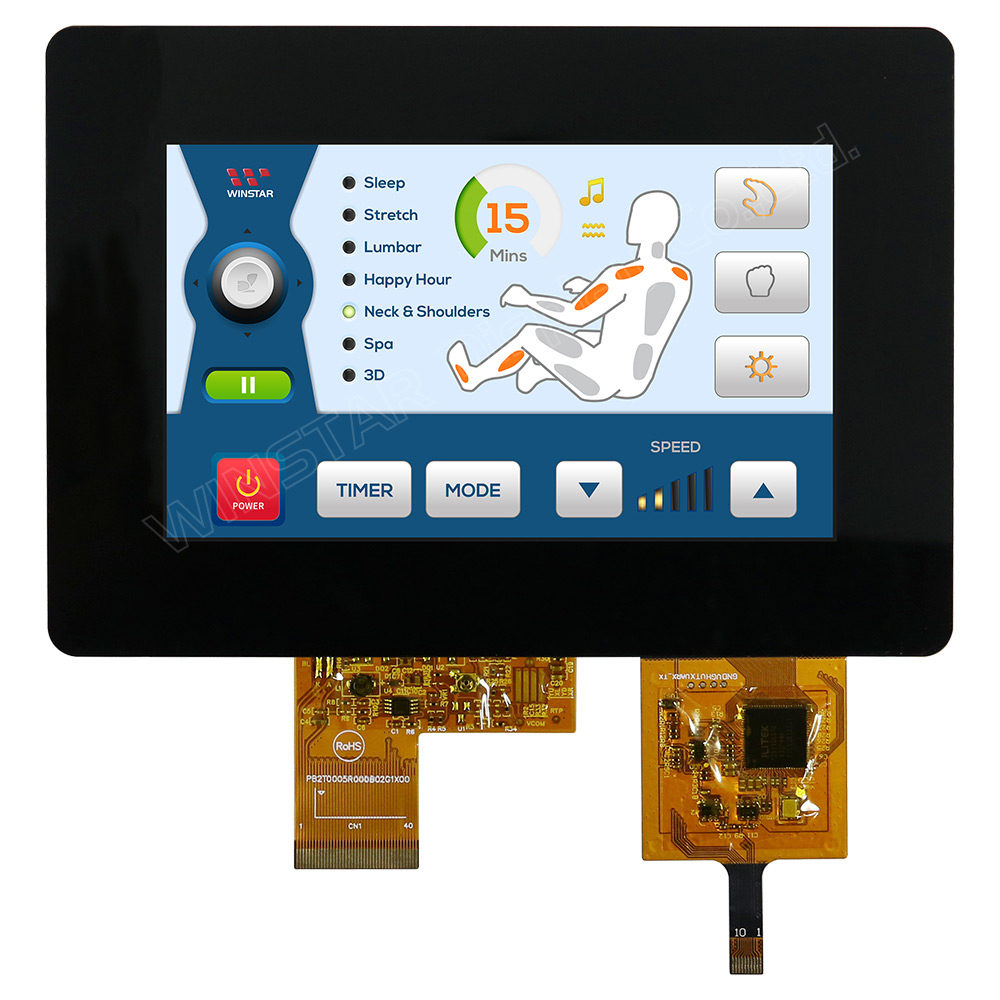

WF50BTIAGDNB0
Size (inch):
5
Active Area (mm):
108×64.8
Resolution:
800×480
Outline Dimension (mm):
147×104
Interface:
RGB -

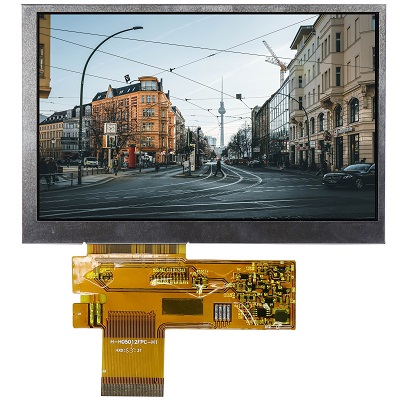

13-050WISB0GA1-S
Size (inch):
5
Active Area (mm):
108×64.8
Resolution:
800×480
Outline Dimension (mm):
120.7×75.8×3.1
Interface:
TTL -

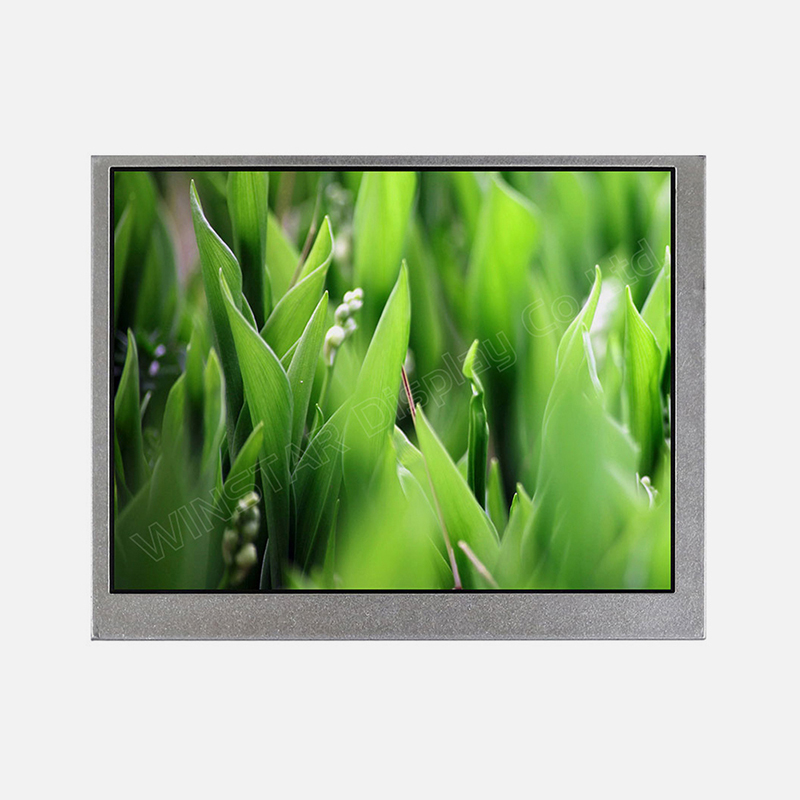

WF56BTIAFDNN0
Size (inch):
5.6
Active Area (mm):
112.896×84.672
Resolution:
640×480
Outline Dimension (mm):
126.5×100
Interface:
RGB -

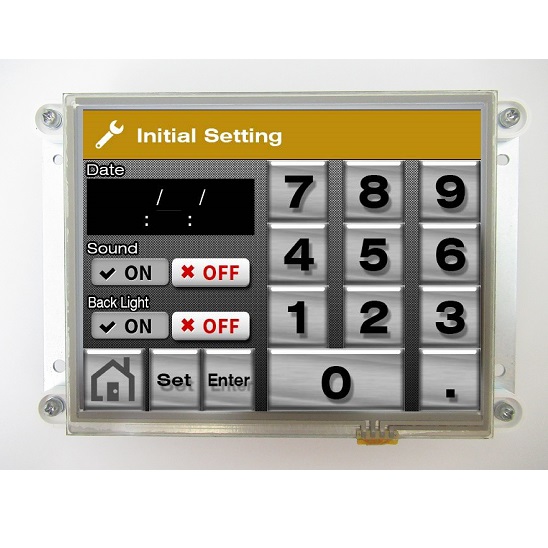

LC057LA1RD
Size (inch):
5.7
Active Area (mm):
115.2 x 86.4
Resolution:
640 x x 480
Outline Dimension (mm):
147.6 x 103.05
Interface:
USB / RS-232C / UART -

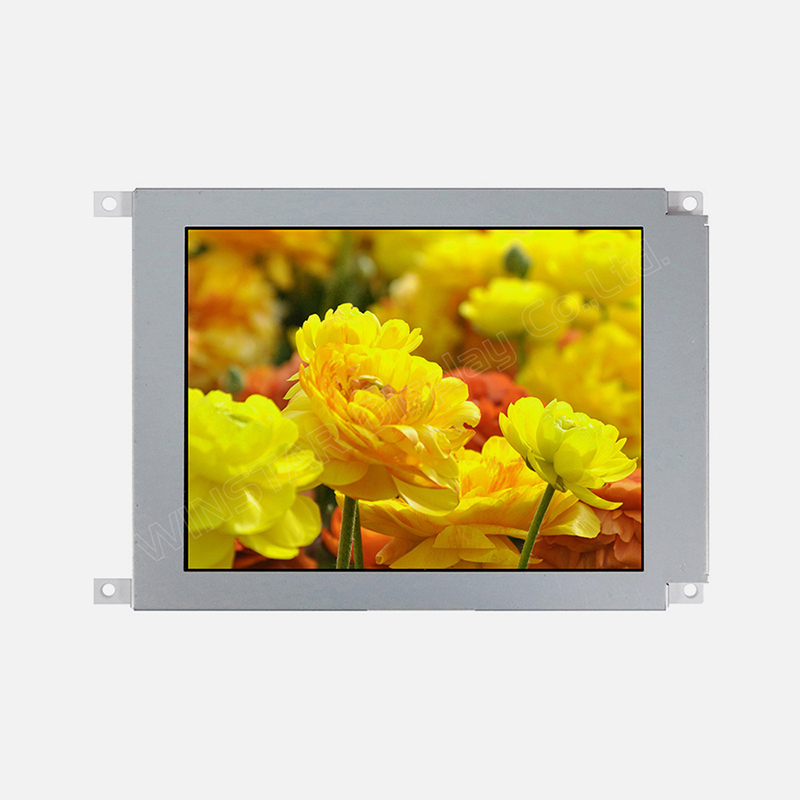

WF57BTCECLNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
160×109
Interface:
LVDS -
WF57BTIACDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
160×109
Interface:
RGB -

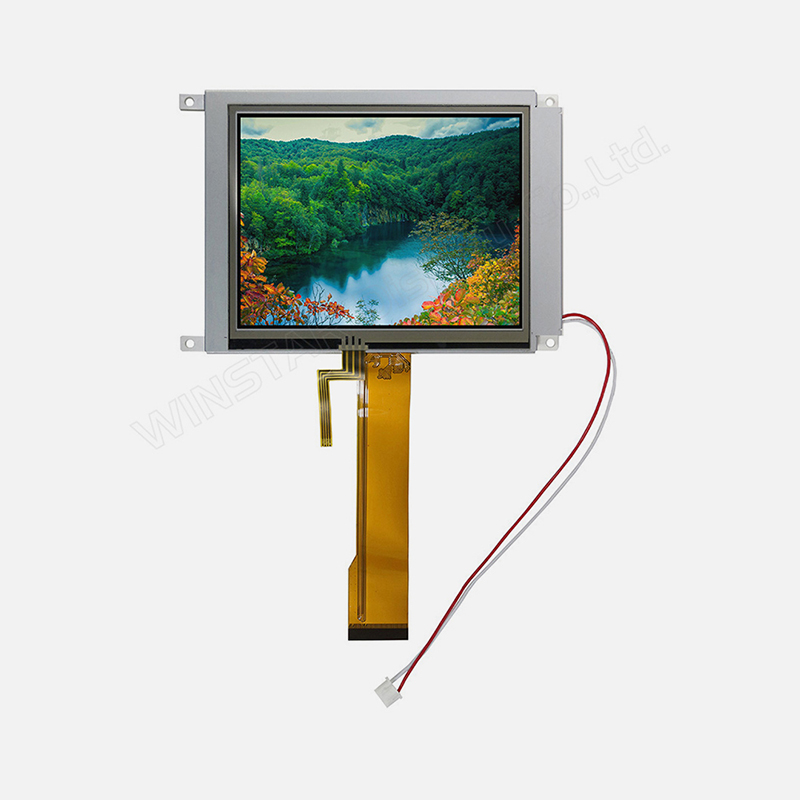

WF57BTIACDNT0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
160×109
Interface:
RGB -

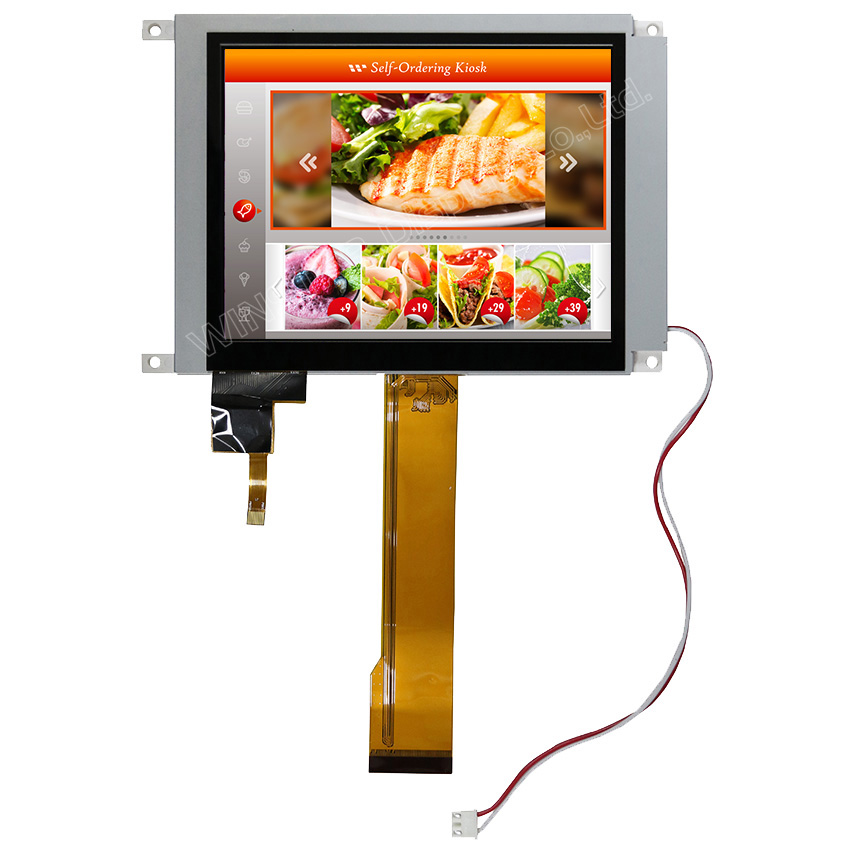

WF57BTIACDNGF
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
160×109
Interface:
RGB -

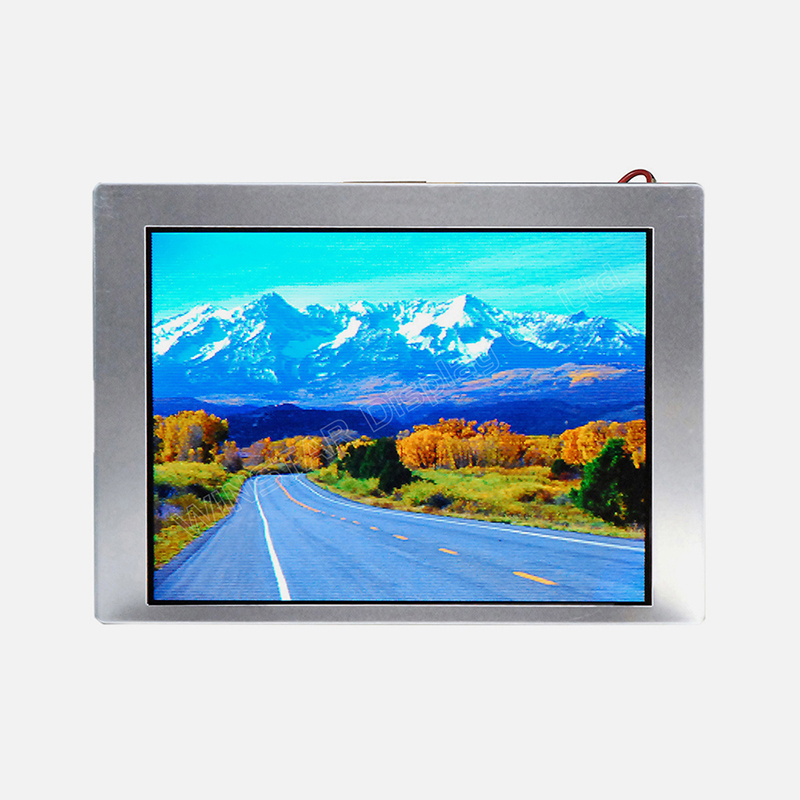

WF57CTLECDNN0
Size (inch):
5.7
Active Area (mm):
115.2×87.6
Resolution:
320×240
Outline Dimension (mm):
143.5×104.1
Interface:
RGB -

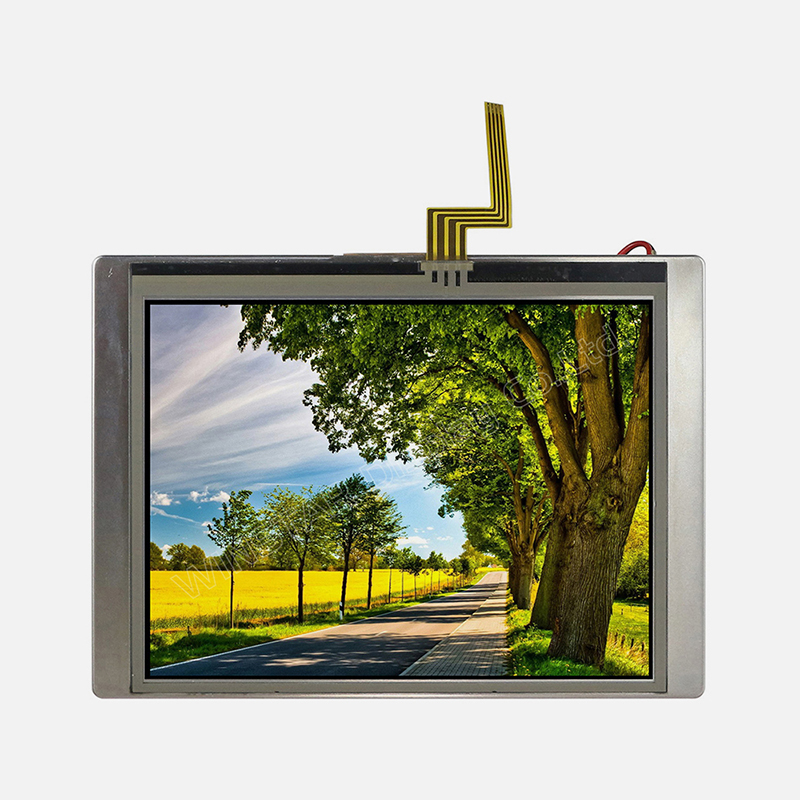

WF57CTLECDNT0
Size (inch):
5.7
Active Area (mm):
115.2×87.6
Resolution:
320×240
Outline Dimension (mm):
143.5×104.1
Interface:
RGB -

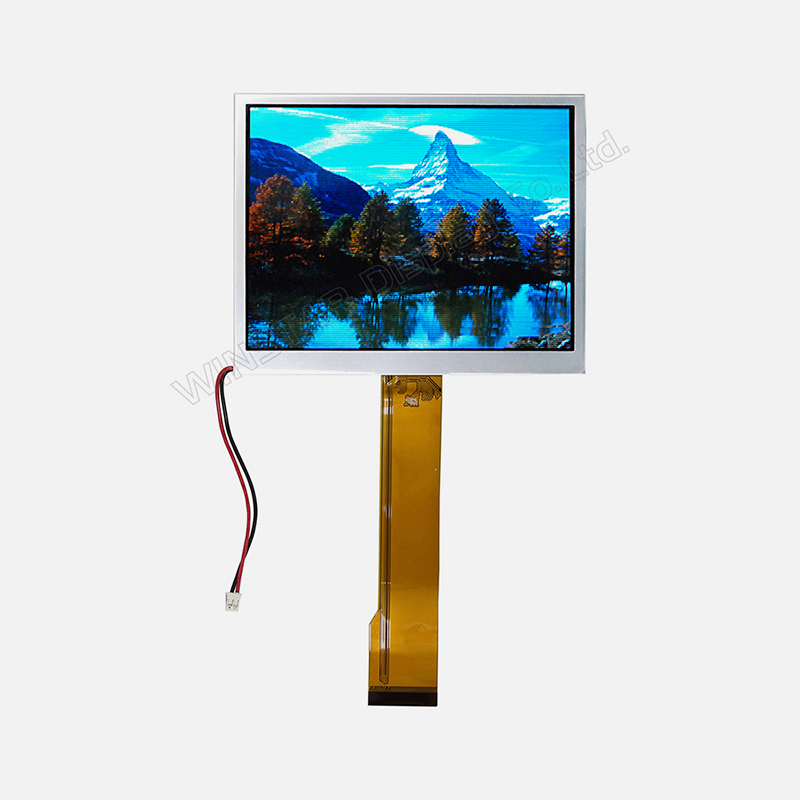

WF57DTIACDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
126×101.55
Interface:
RGB -
WF57DTIACDNT0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
126×101.55
Interface:
RGB -

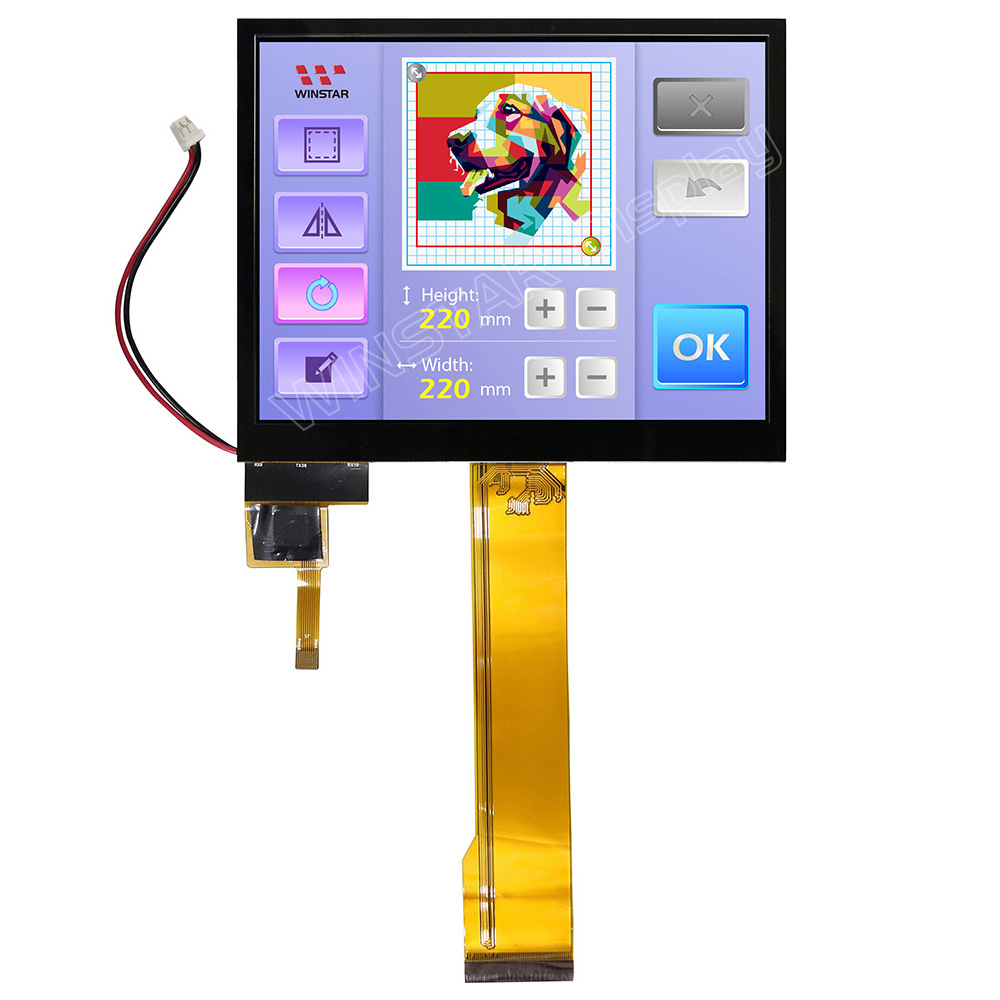

WF57DTIACDNGE
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
126×101.55
Interface:
RGB -
WF57ETZACDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

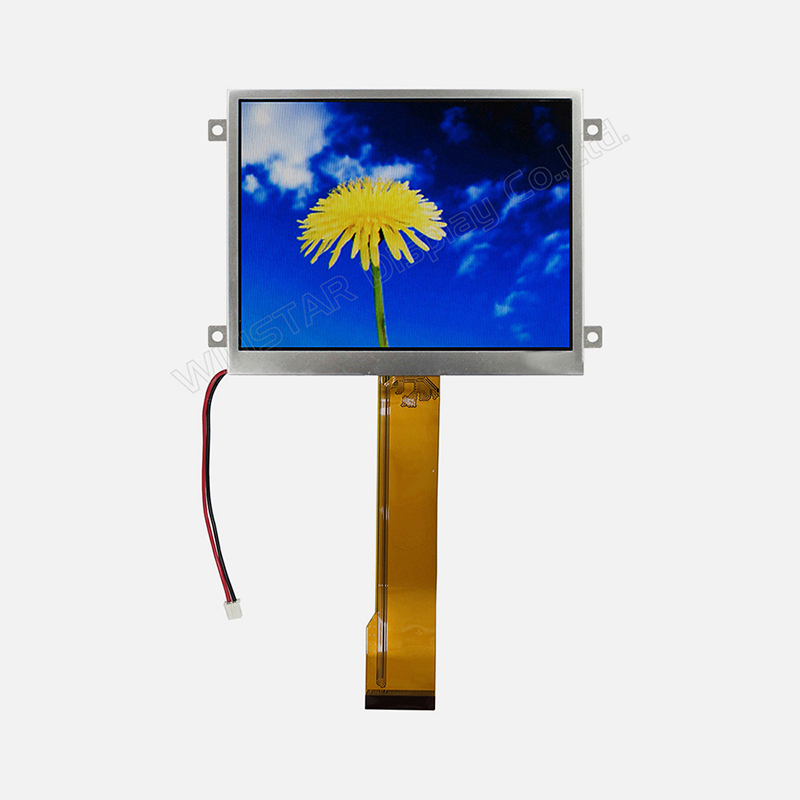

WF57ETIACDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

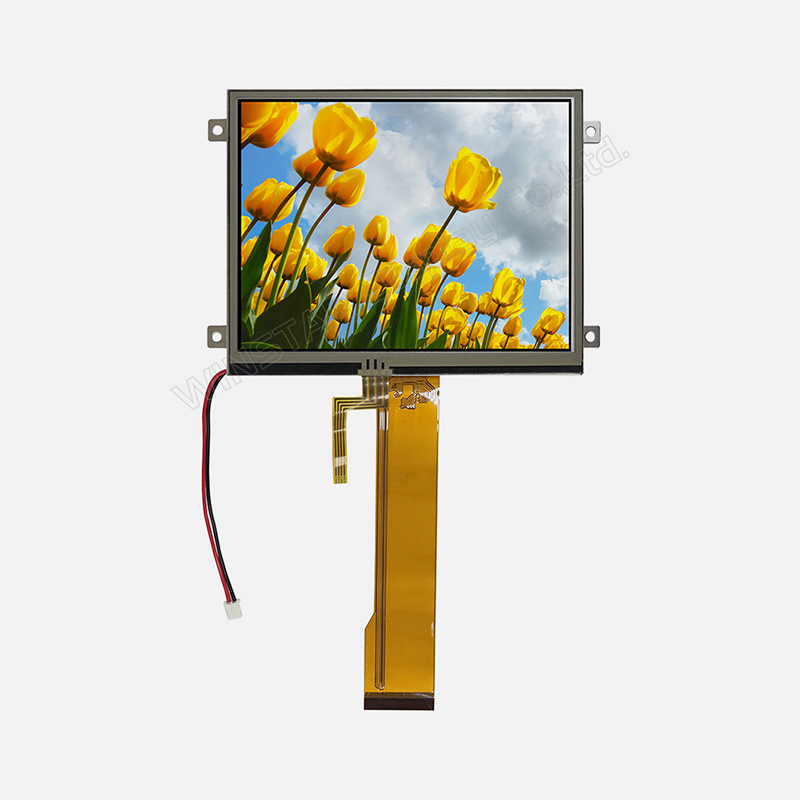

WF57ETIACDNT0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

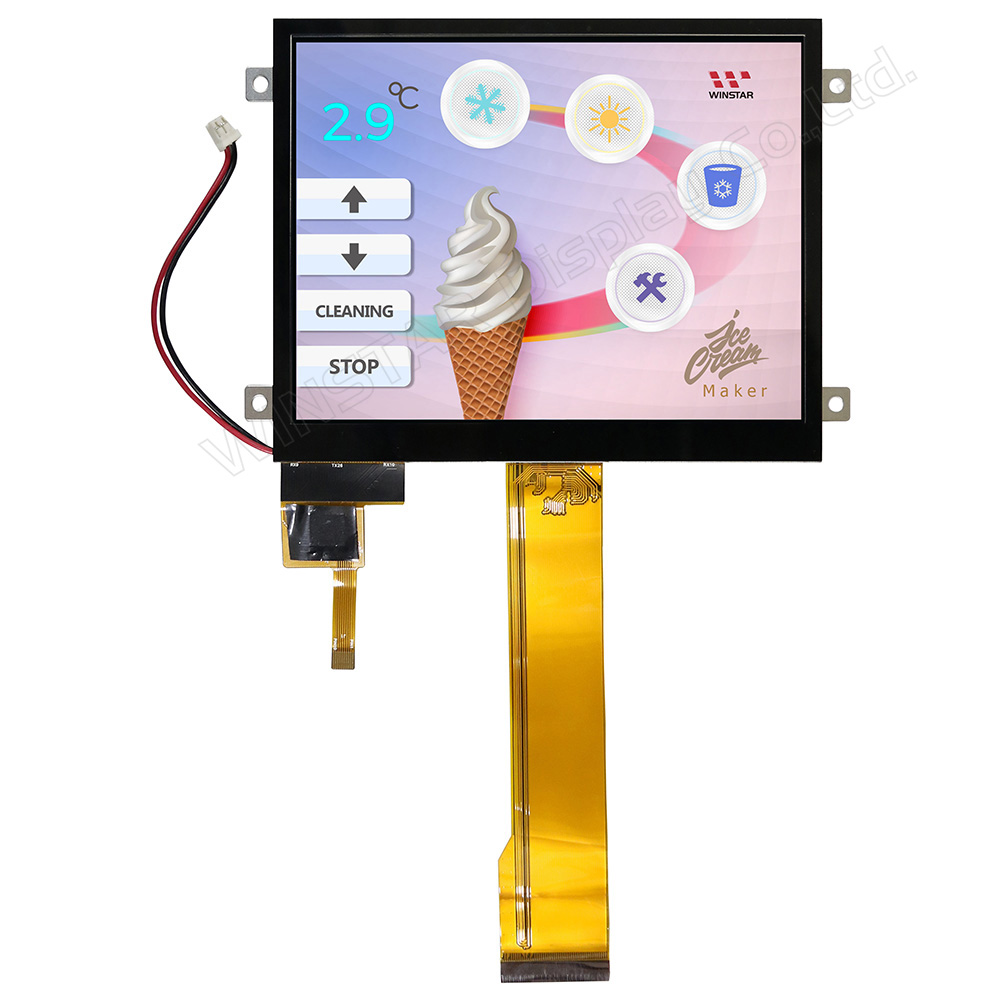

WF57ETIACDNGG
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

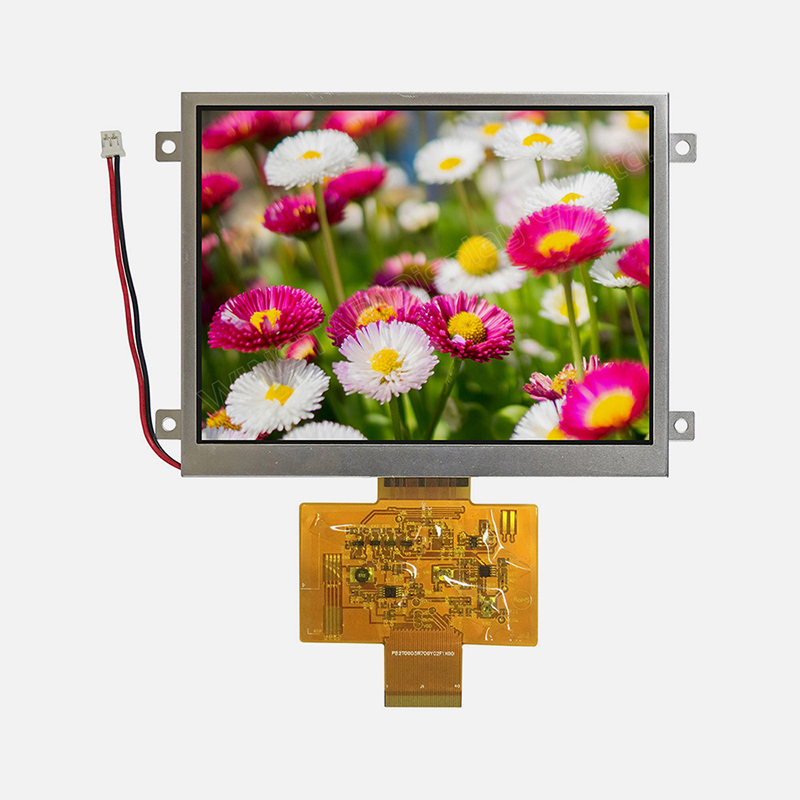

WF57YTIGCDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

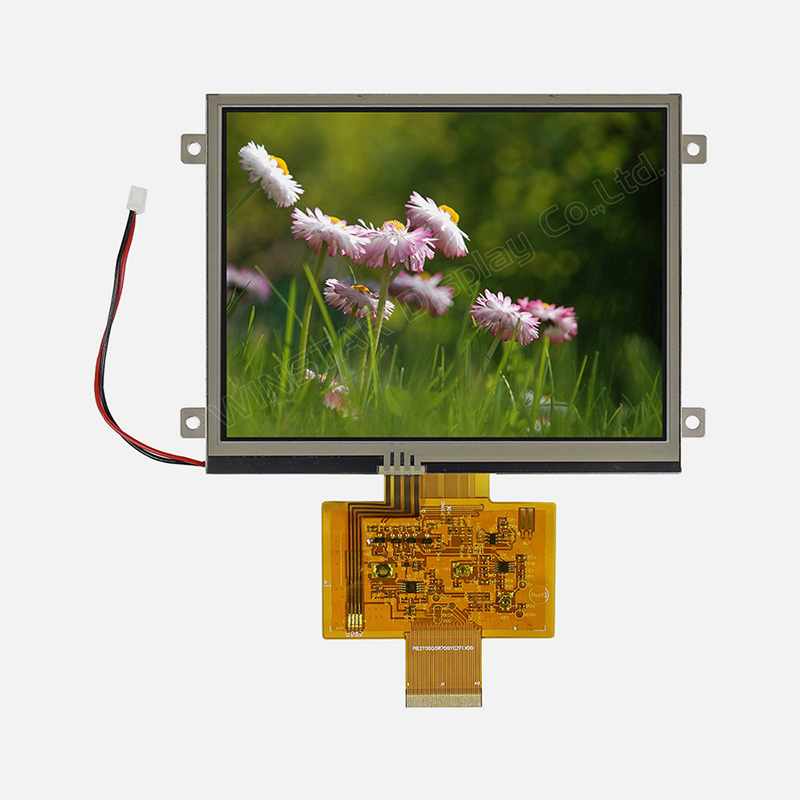

WF57YTIGCDNT0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
320×240
Outline Dimension (mm):
141.12×101.55
Interface:
RGB -

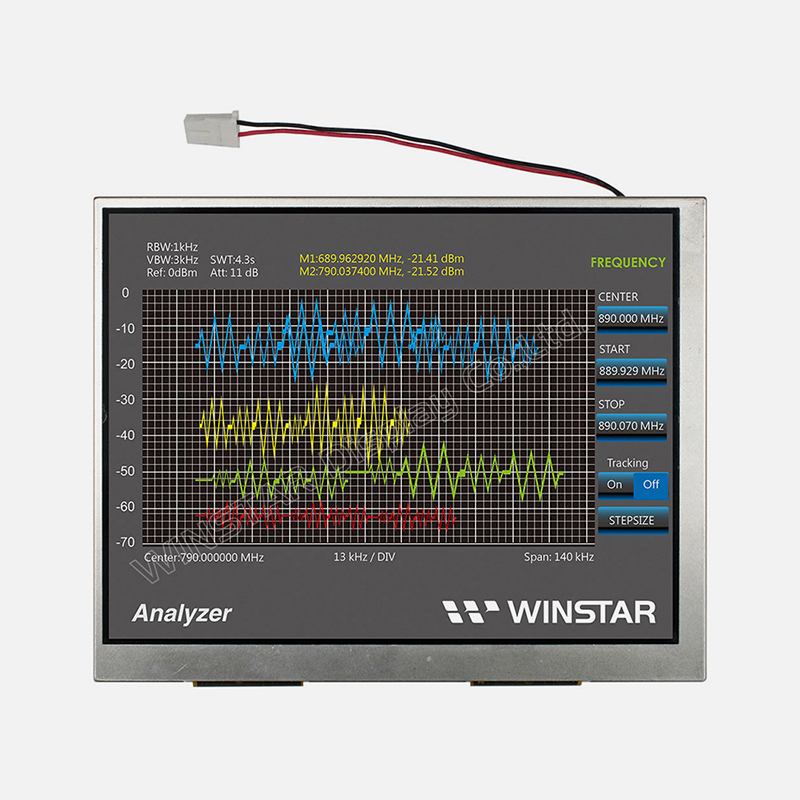

WF57FTLAFDNN0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
640×480
Outline Dimension (mm):
125×98.8
Interface:
RGB -

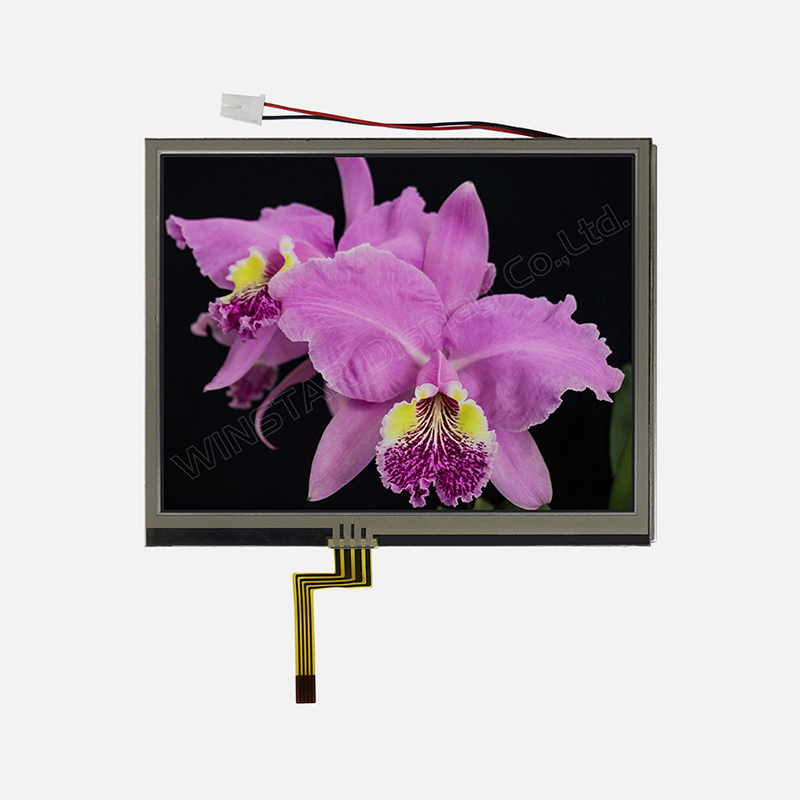

WF57FTLAFDNT0
Size (inch):
5.7
Active Area (mm):
115.2×86.4
Resolution:
640×480
Outline Dimension (mm):
127.14×100.9
Interface:
RGB -

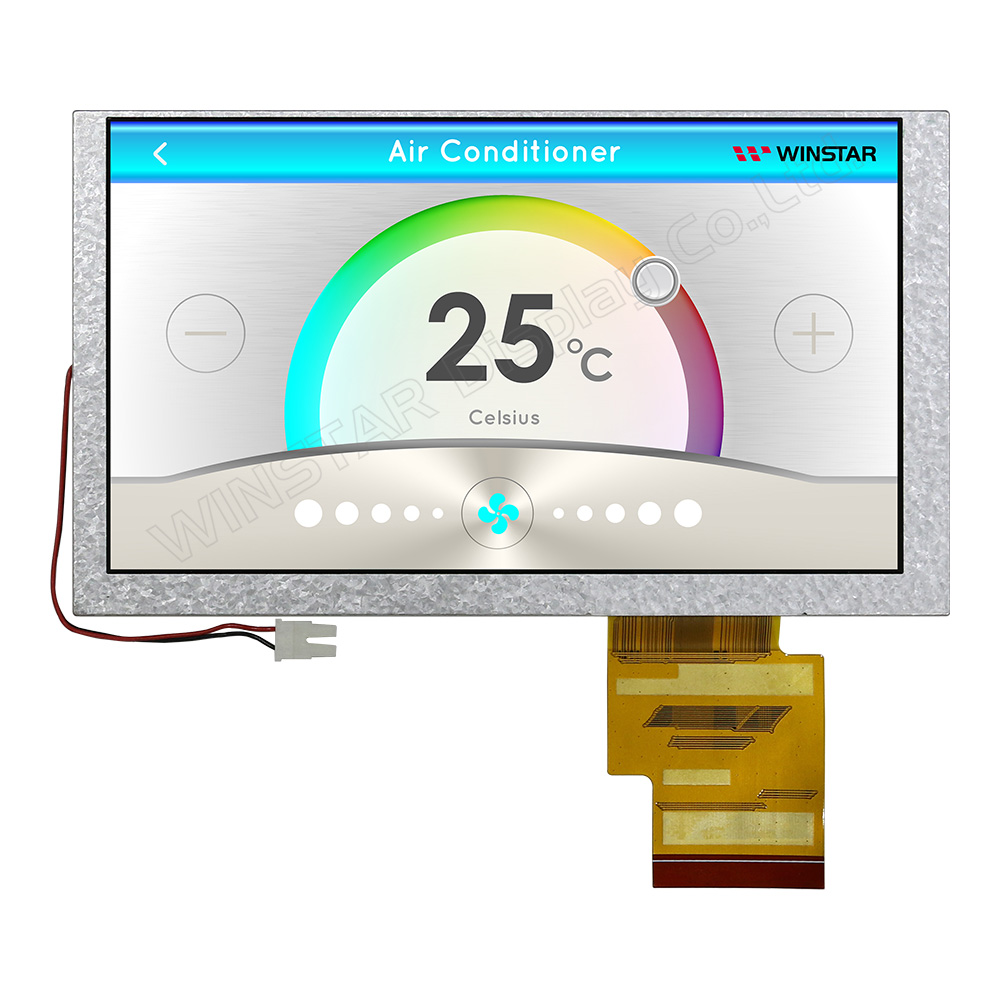

WF62CTIAGDNNA
Size (inch):
6.2
Active Area (mm):
137.52x 77.232
Resolution:
800×480
Outline Dimension (mm):
155.2×89.2
Interface:
RGB -

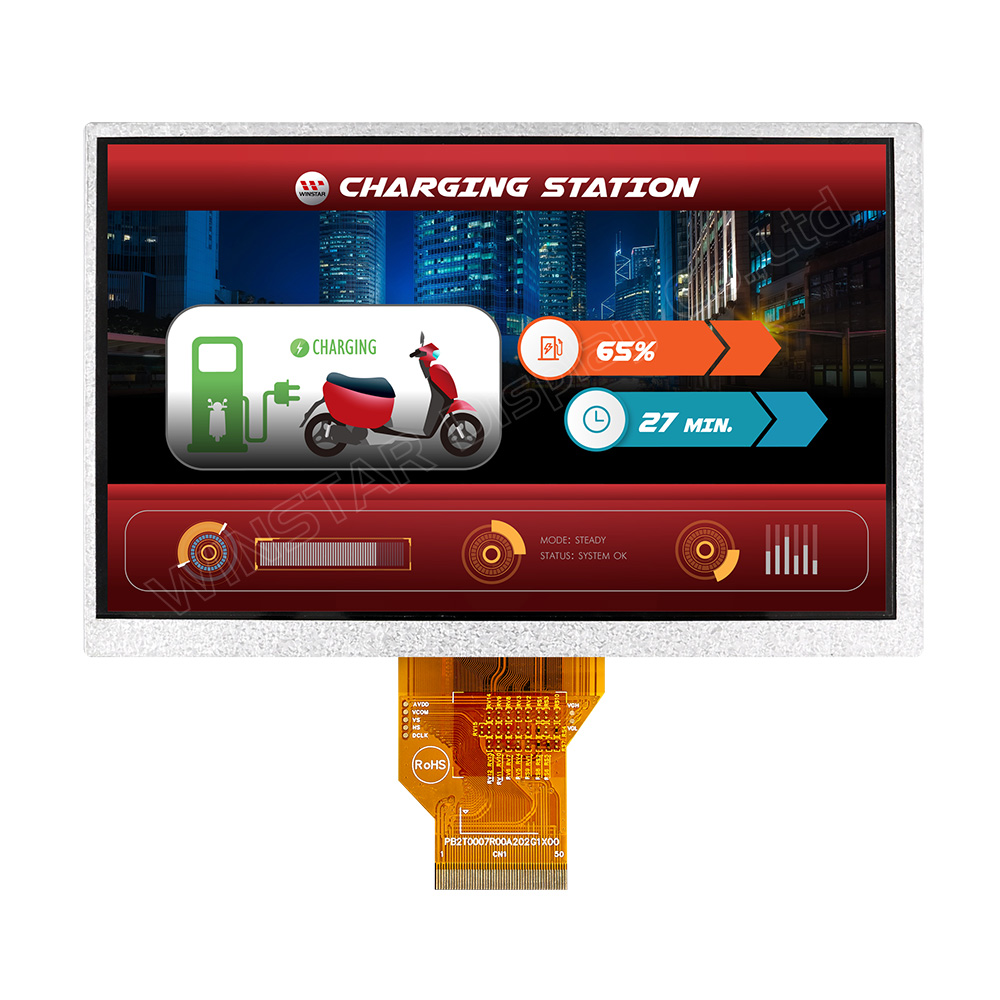

WF70A2TIAGDNN0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

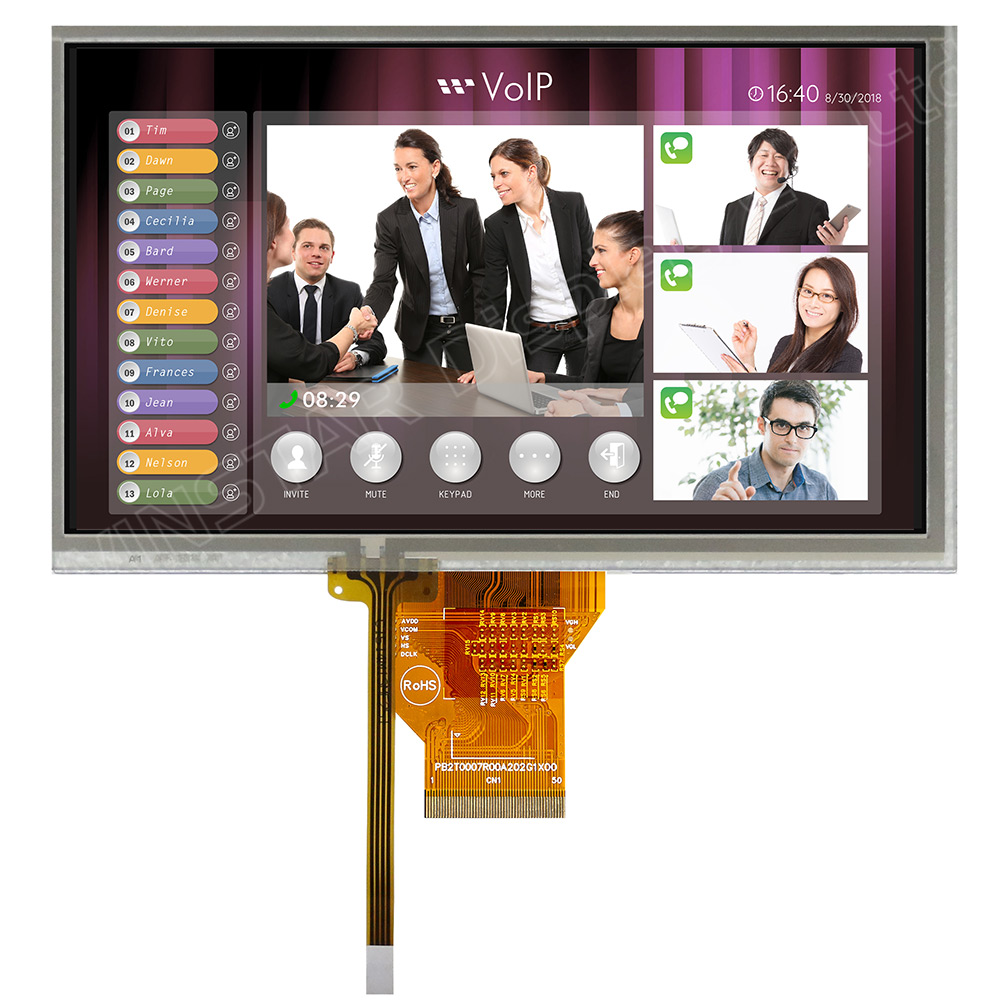

WF70A2TIAGDNT0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

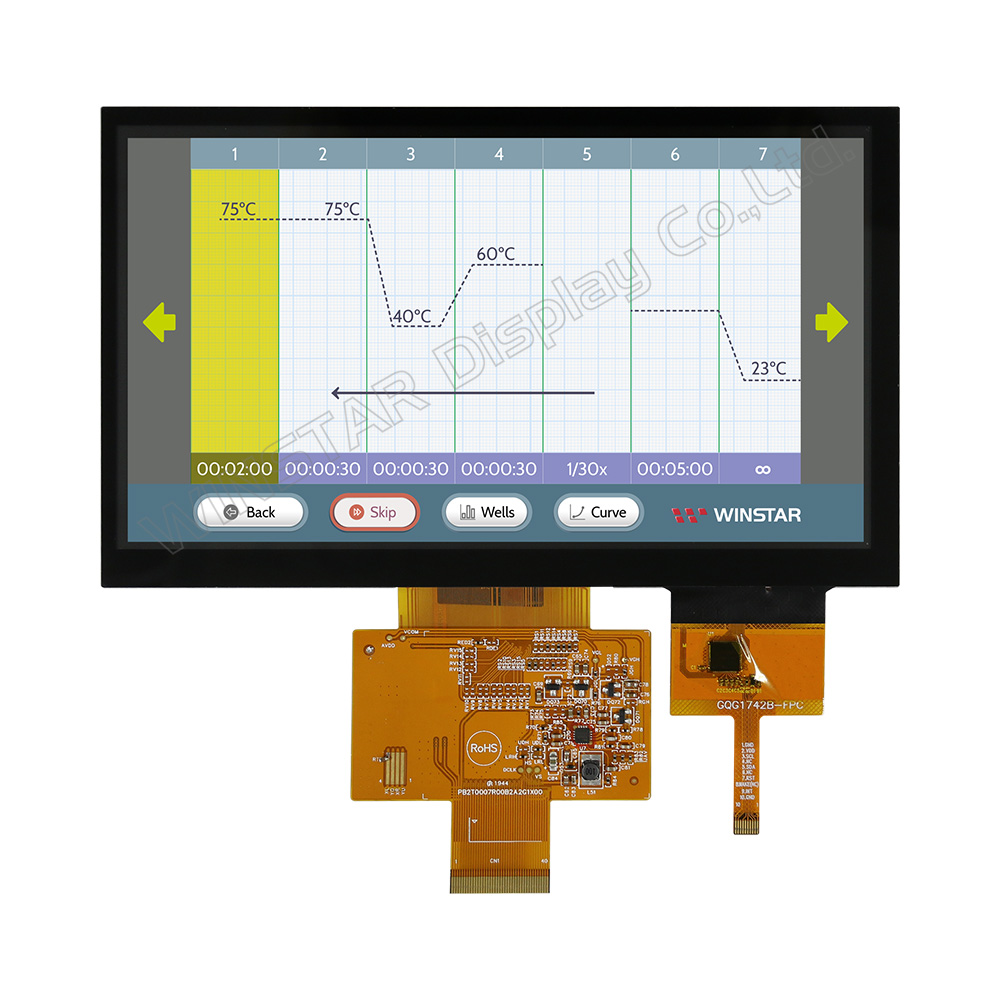

WF70B2SIAGDNGA
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

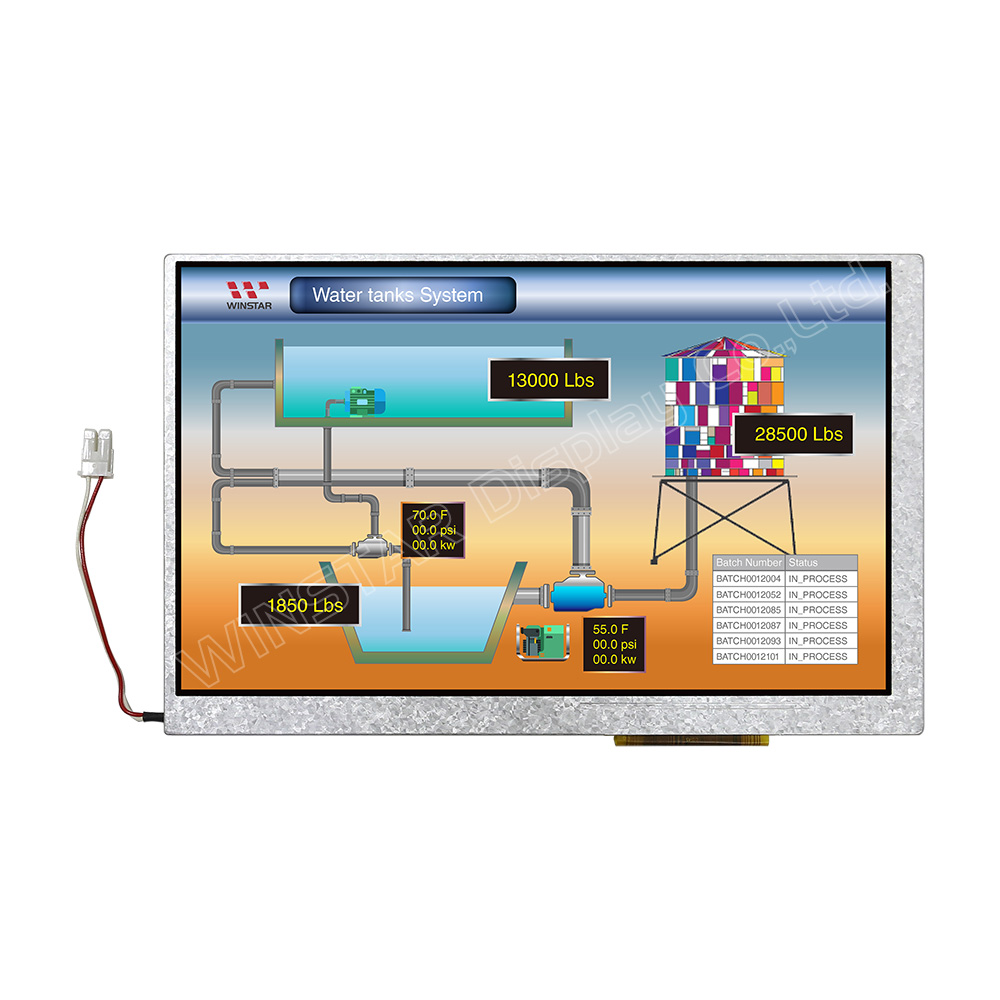

WF70A6TIAGDNN0
Size (inch):
7
Active Area (mm):
152.4×91.44
Resolution:
800×480
Outline Dimension (mm):
165.05×104.87
Interface:
RGB -

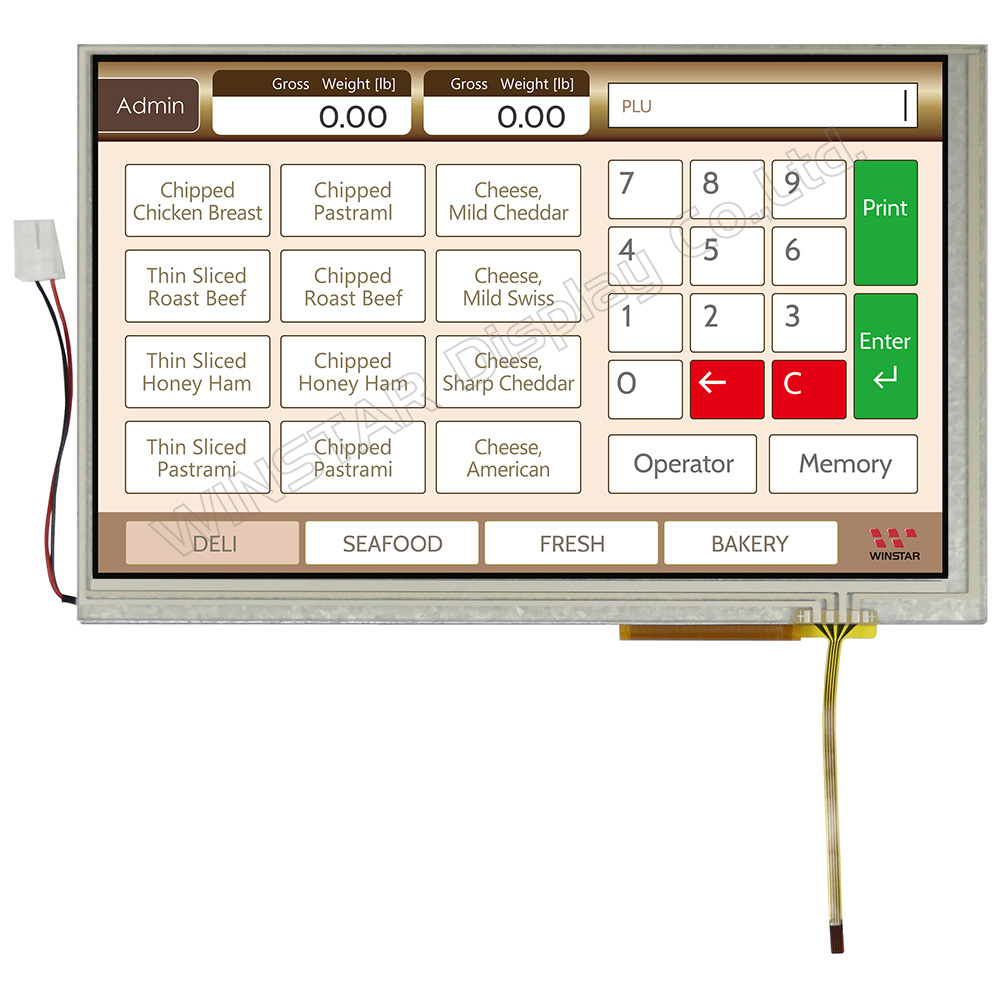

WF70A6TIAGDNT0
Size (inch):
7
Active Area (mm):
152.4×91.44
Resolution:
800×480
Outline Dimension (mm):
165.05×104.87
Interface:
RGB -

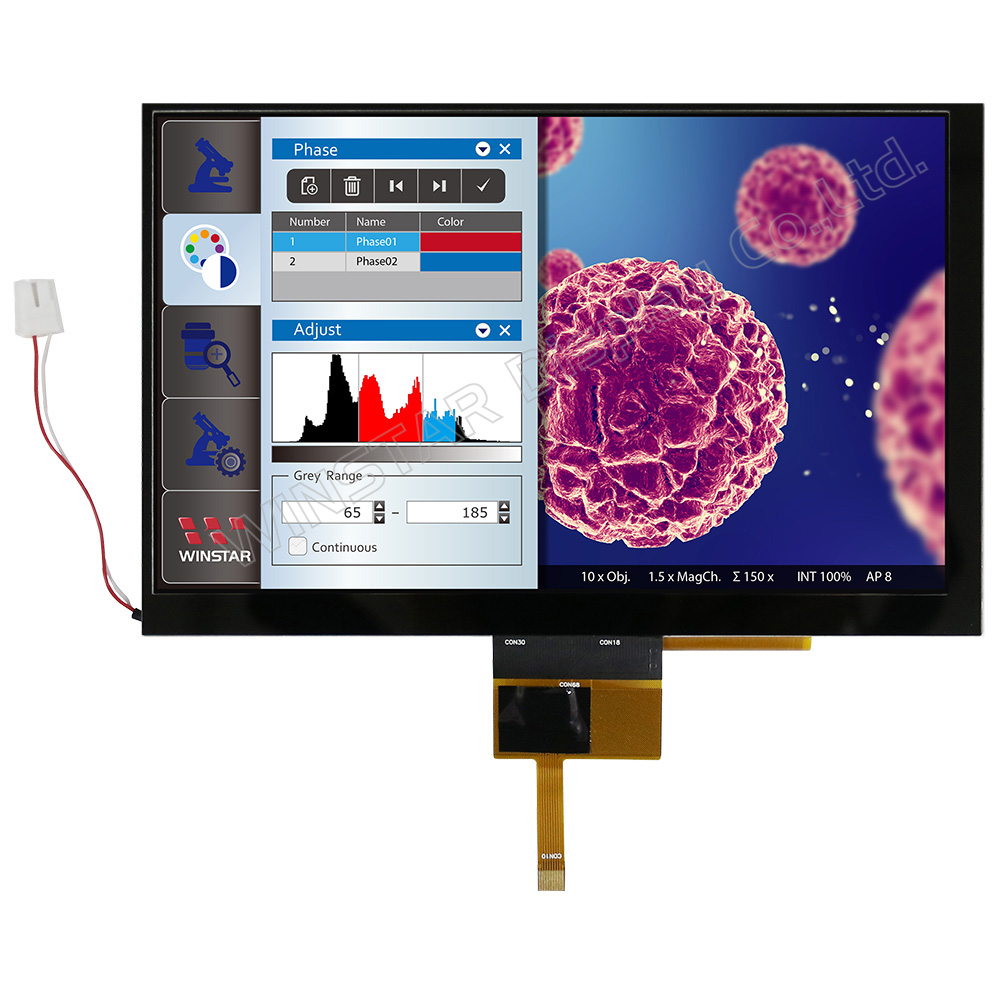

WF70A6TIAGDNG0
Size (inch):
7
Active Area (mm):
152.4×91.44
Resolution:
800×480
Outline Dimension (mm):
165.05×104.87
Interface:
RGB -

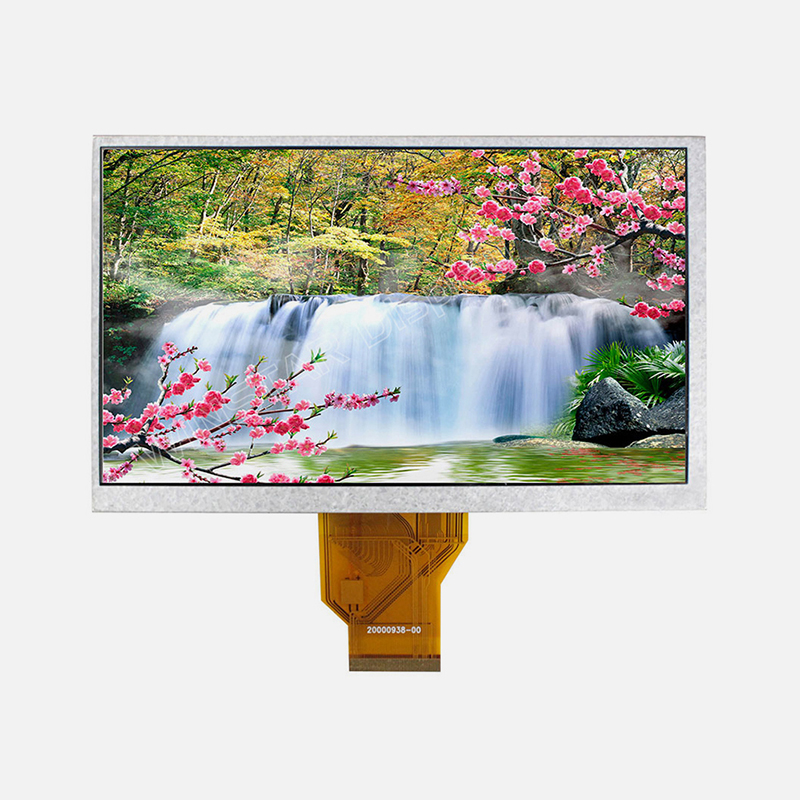

WF70GTIAGDNN0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

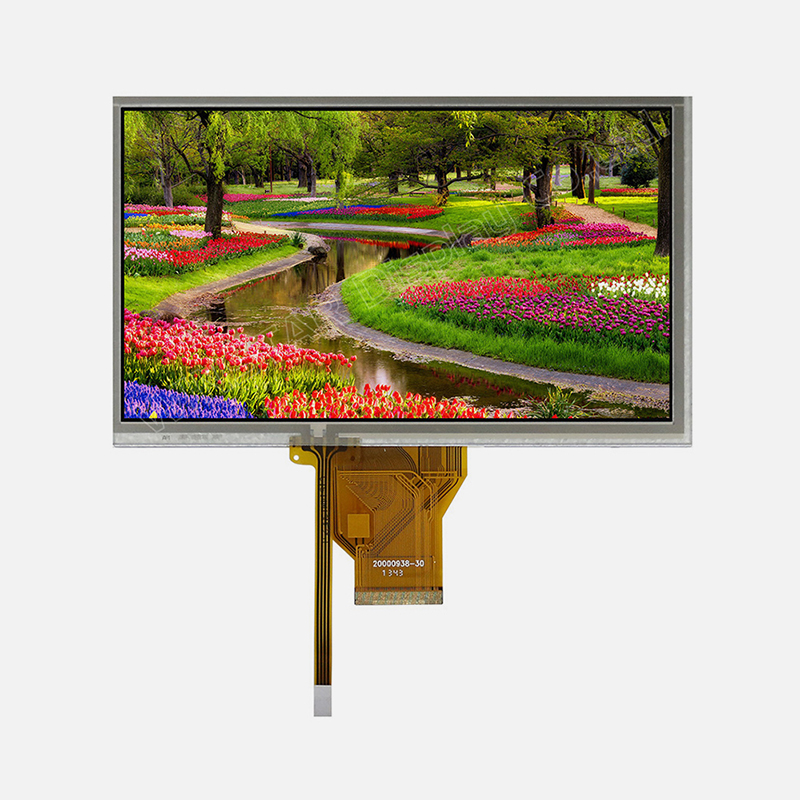

WF70GTIAGDNT0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

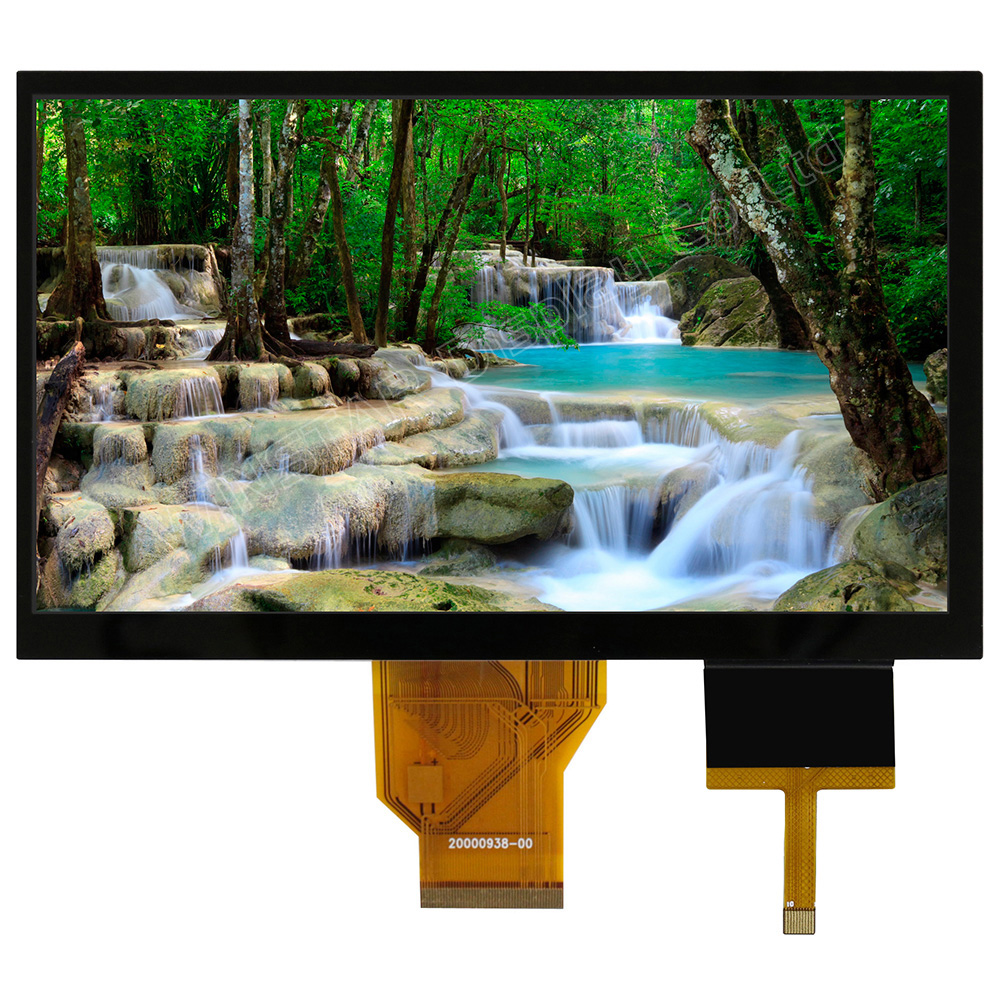

WF70GTIAGDNGD
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

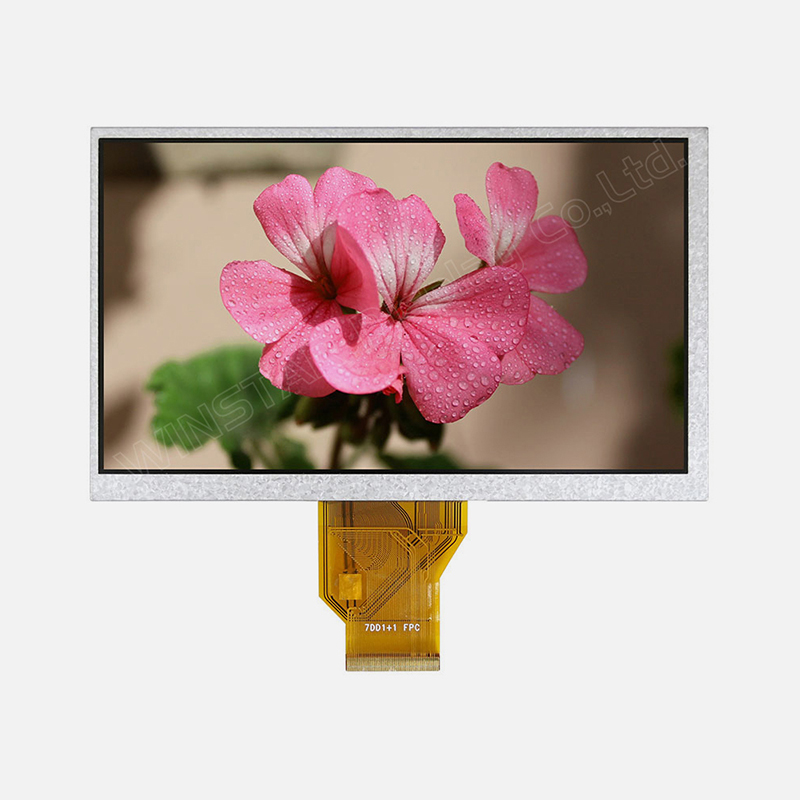

WF70GTZAGDNN0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

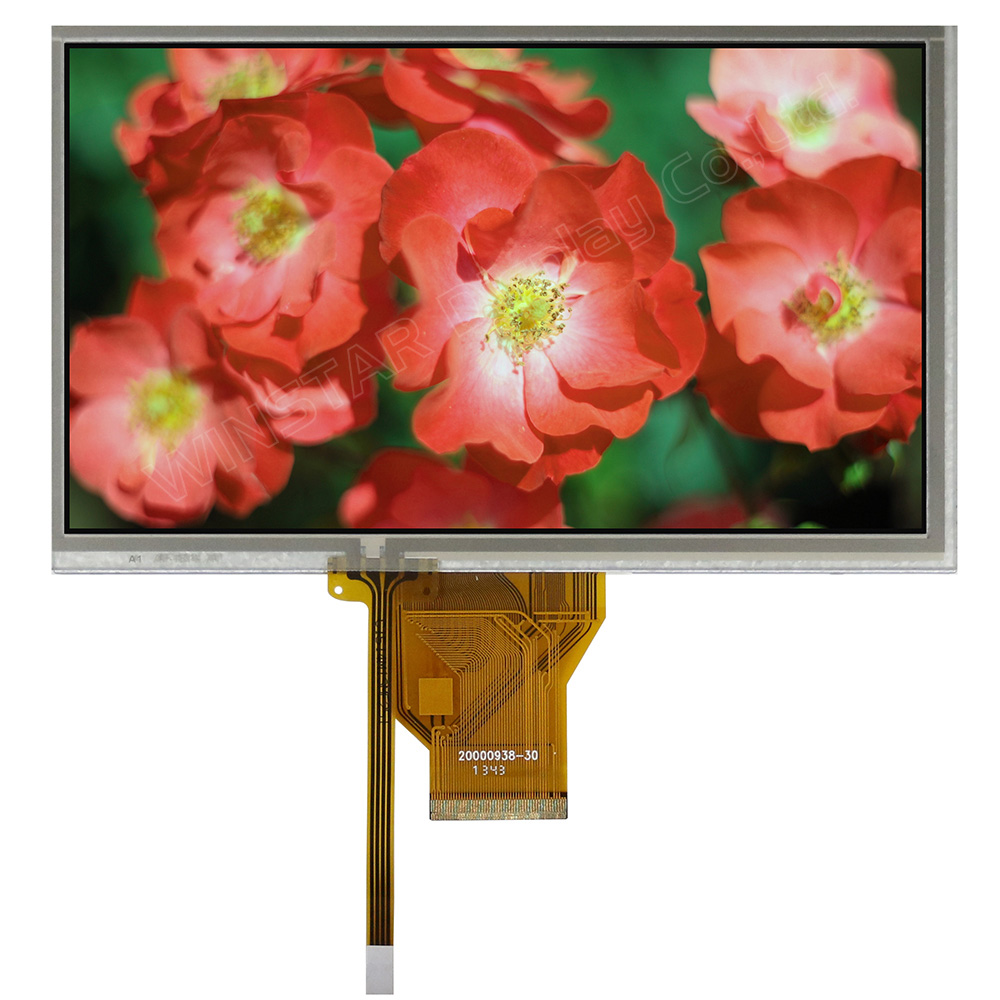

WF70GTZAGDNT0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

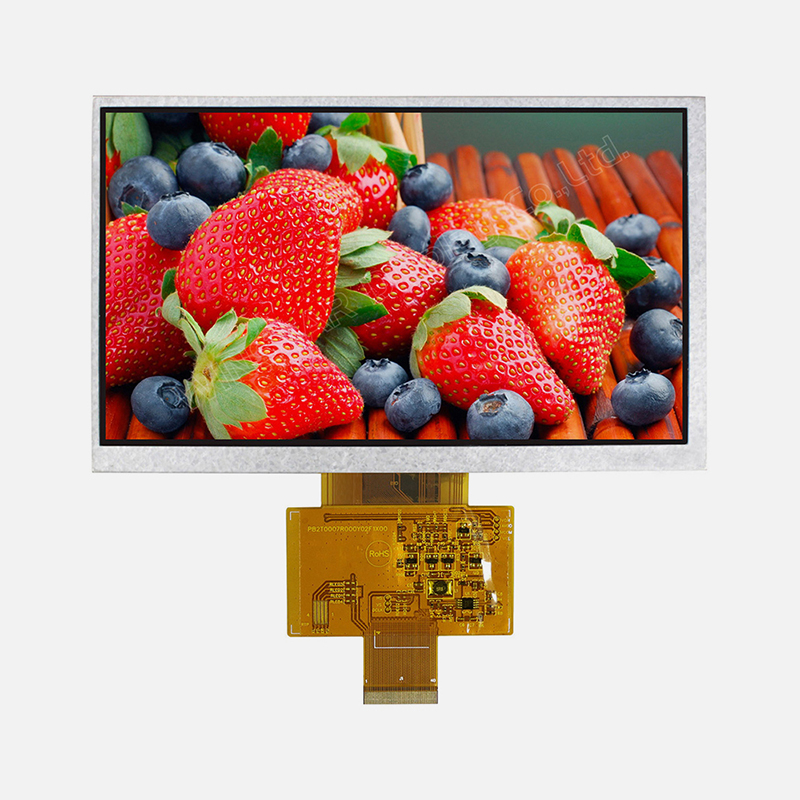

WF70YTIAGDNN0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

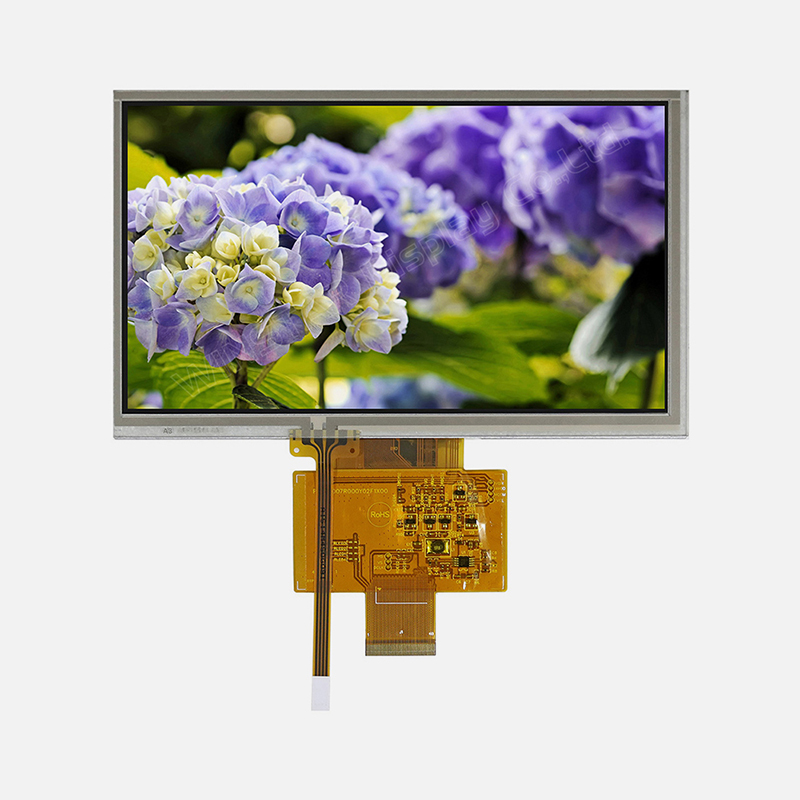

WF70YTIAGDNT0
Size (inch):
7
Active Area (mm):
154.08×85.92
Resolution:
800×480
Outline Dimension (mm):
165×100
Interface:
RGB -

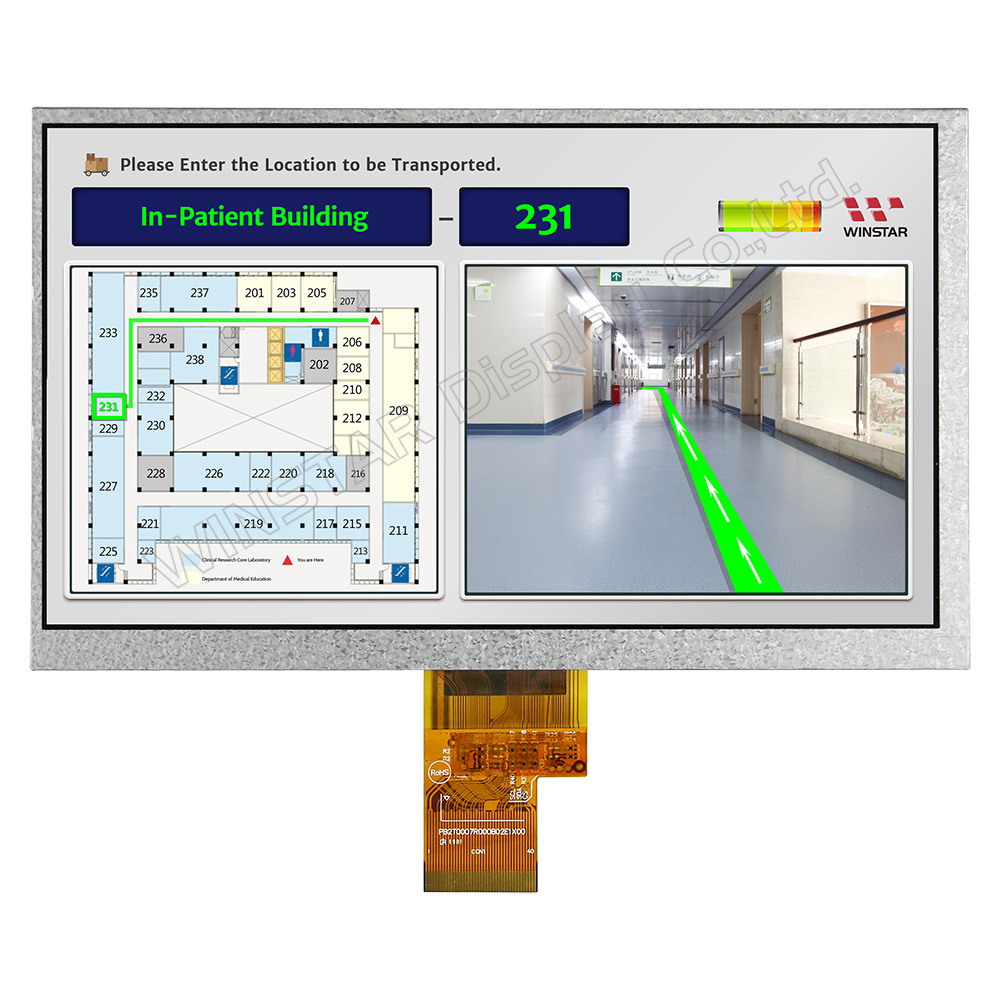

WF70A7TIAHLNN0
Size (inch):
7
Active Area (mm):
154.2144×85.92
Resolution:
1024×600
Outline Dimension (mm):
164.8×99.8
Interface:
LVDS -

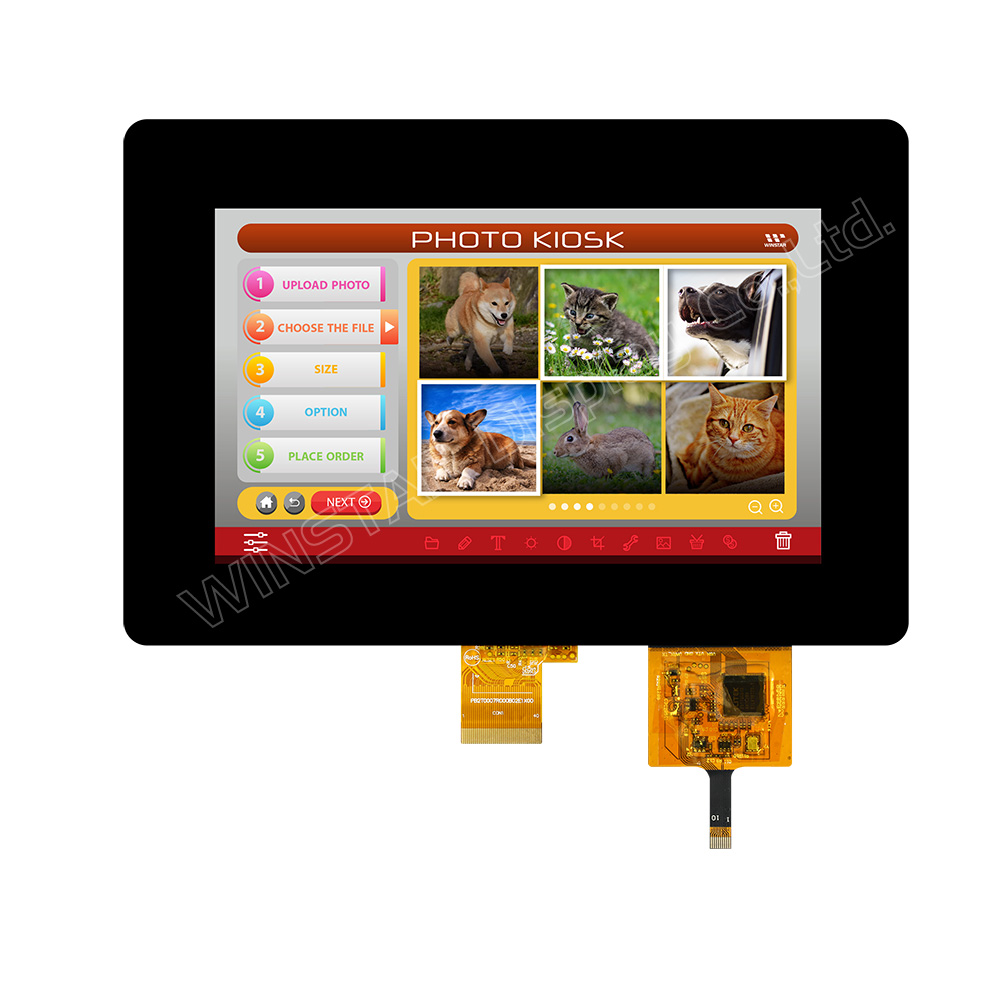

WF70A7TIAHLNB0
Size (inch):
7
Active Area (mm):
154.2144×85.92
Resolution:
1024×600
Outline Dimension (mm):
202×135.5
Interface:
LVDS -
13-070WIEC0GA0-S
Size (inch):
7
Active Area (mm):
152.4×91.44
Resolution:
800×480
Outline Dimension (mm):
165×104.07×6.8
Interface:
LVDS -

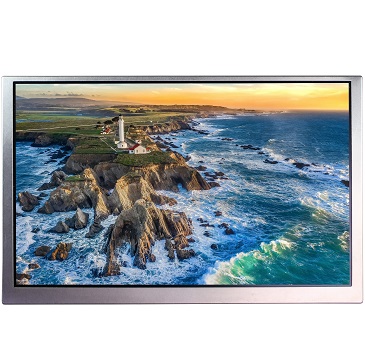

13-070WITC0GA0-S
Size (inch):
7
Active Area (mm):
152.4×91.44
Resolution:
800×480
Outline Dimension (mm):
165×104.07×6.8
Interface:
TTL -

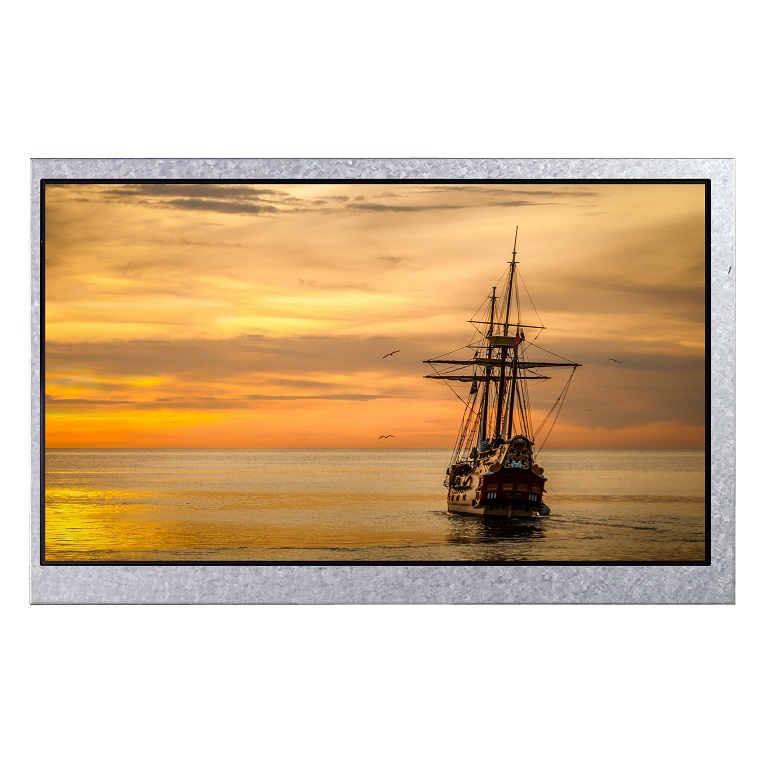

13-070WMLB00B0-S
Size (inch):
7
Active Area (mm):
153.6×86.64
Resolution:
800×480
Outline Dimension (mm):
165x104x5.05
Interface:
LVDS -

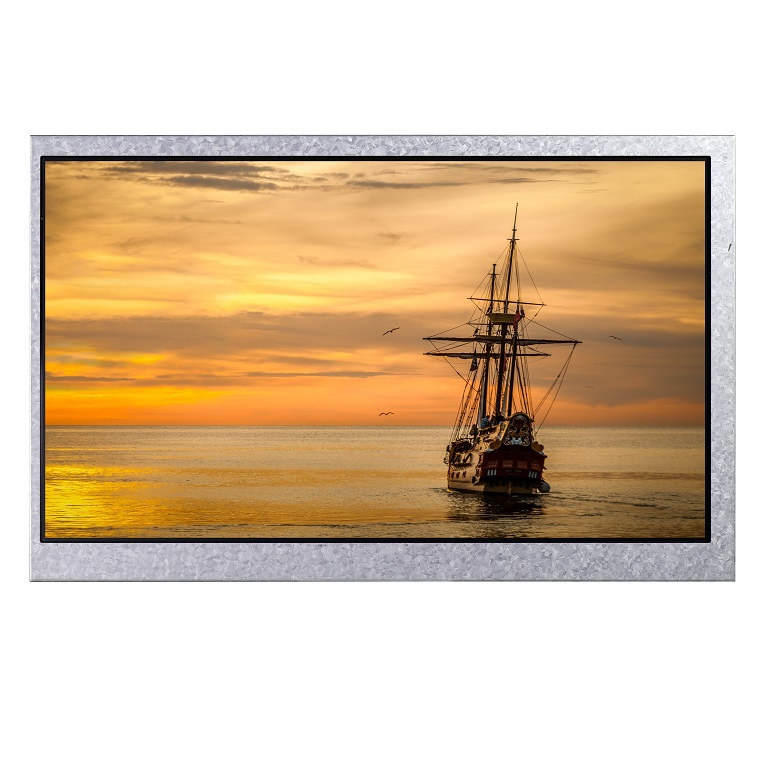

13-070WMLB00A1-S
Size (inch):
7
Active Area (mm):
153.6×86.64
Resolution:
800×480
Outline Dimension (mm):
165x104x3.5
Interface:
LVDS -

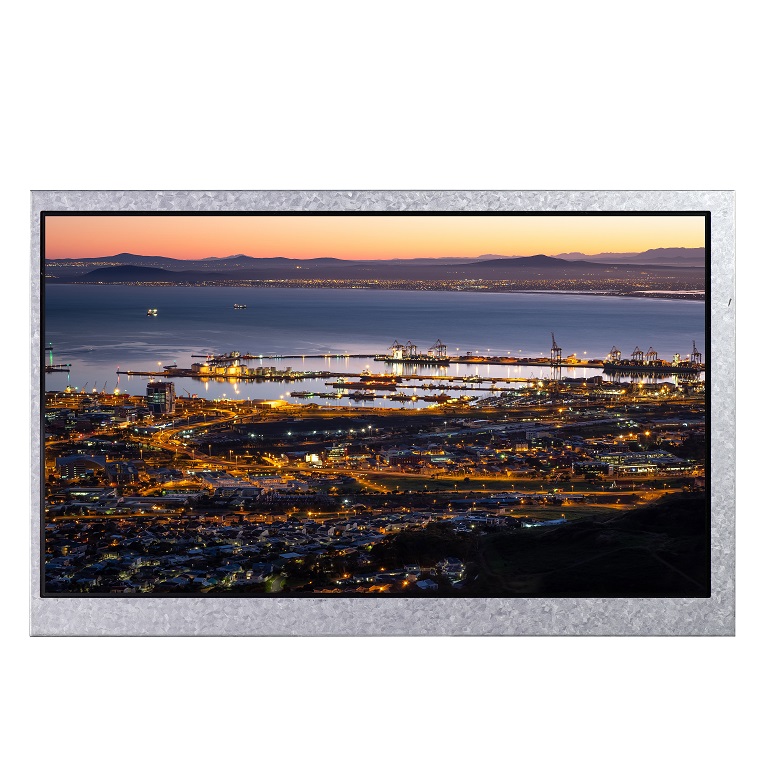

13-070WMTB00A1-S
Size (inch):
7
Active Area (mm):
153.6×86.64
Resolution:
800×480
Outline Dimension (mm):
165x104x3.5
Interface:
TTL -

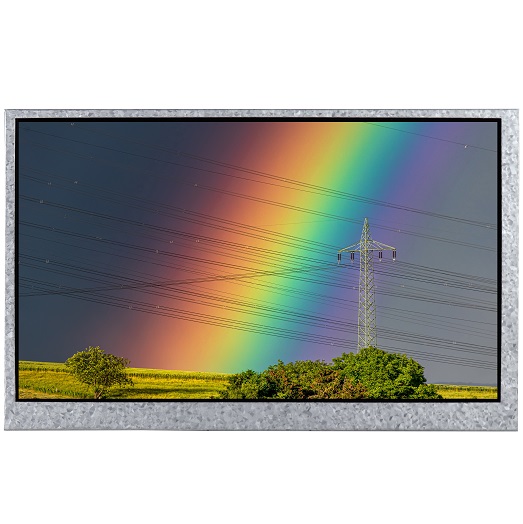

13-070XIEB0GH6-S
Size (inch):
7
Active Area (mm):
154.21×85.92
Resolution:
1024×600
Outline Dimension (mm):
165x104x5
Interface:
LVDS -

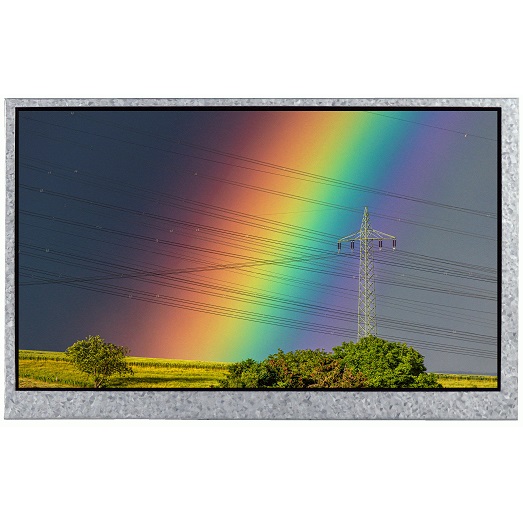

13-070XITB0GH6-S
Size (inch):
7
Active Area (mm):
154.21×85.92
Resolution:
1024×600
Outline Dimension (mm):
165x104x8.3
Interface:
TTL -

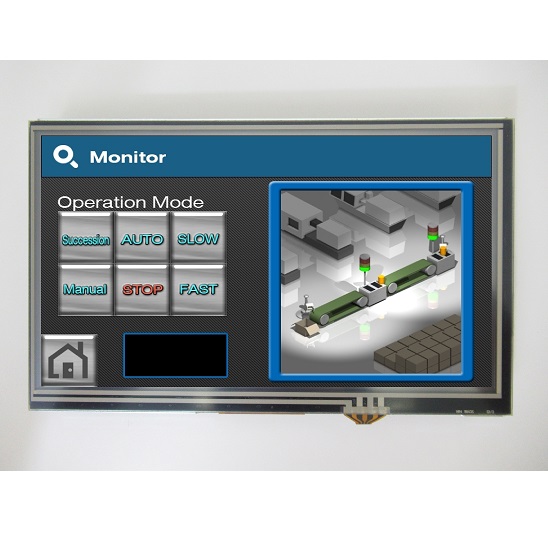

LC070LA1NA
Size (inch):
7
Active Area (mm):
154.08 x 85.92
Resolution:
800 x x 480
Outline Dimension (mm):
167 x 102.3
Interface:
USB -
LC070LA1RA
Size (inch):
7
Active Area (mm):
154.08 x 85.92
Resolution:
800 x x 480
Outline Dimension (mm):
167 x 102.3
Interface:
USB -
LC070LA1NB
Size (inch):
7
Active Area (mm):
154.08 x 85.92
Resolution:
800 x x 480
Outline Dimension (mm):
167 x 102.3
Interface:
RS-232C -
LC070LA1RB
Size (inch):
7
Active Area (mm):
154.08 x 85.92
Resolution:
800 x x 480
Outline Dimension (mm):
167 x 102.3
Interface:
RS-232C -

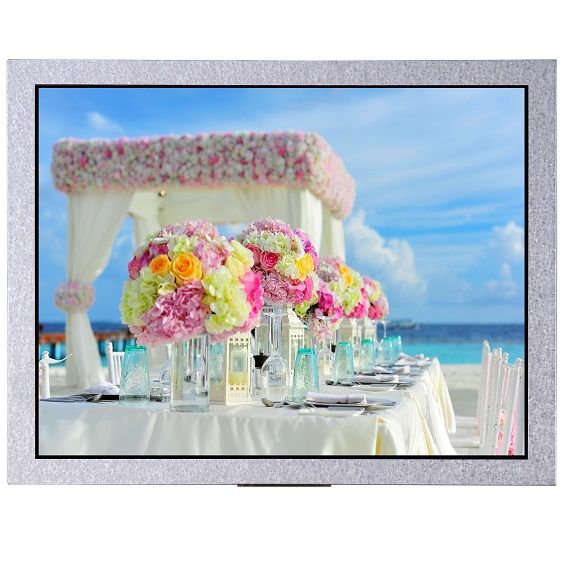

13-080GIEB00A0-S
Size (inch):
8
Active Area (mm):
162.05×121.54
Resolution:
1024×768
Outline Dimension (mm):
183x141x9.6
Interface:
LVDS -

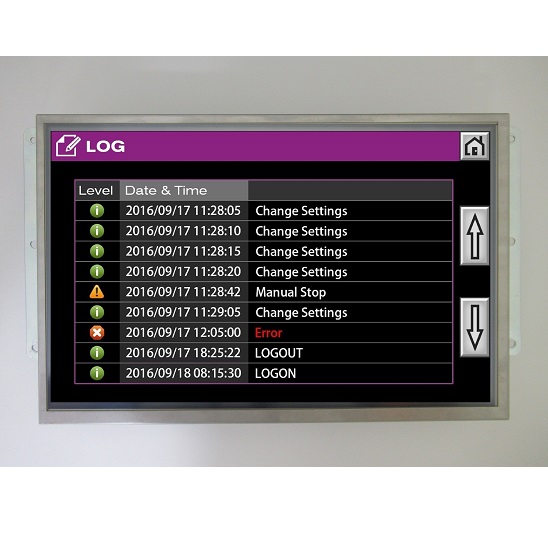

LC101LA1RC
Size (inch):
10.1
Active Area (mm):
216.96 x 135.6
Resolution:
1280 x x 800
Outline Dimension (mm):
250 x 151.8
Interface:
USB / RS-232C -

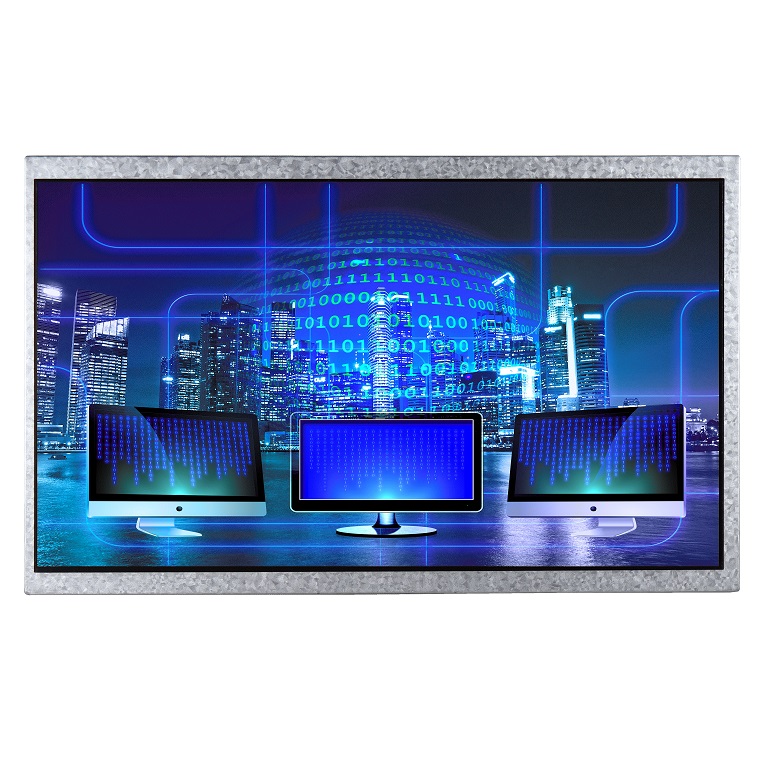

13-101XIEB00C0-S
Size (inch):
10.1
Active Area (mm):
222.72×125.28
Resolution:
1024×600
Outline Dimension (mm):
235x143x3.8
Interface:
LVDS -

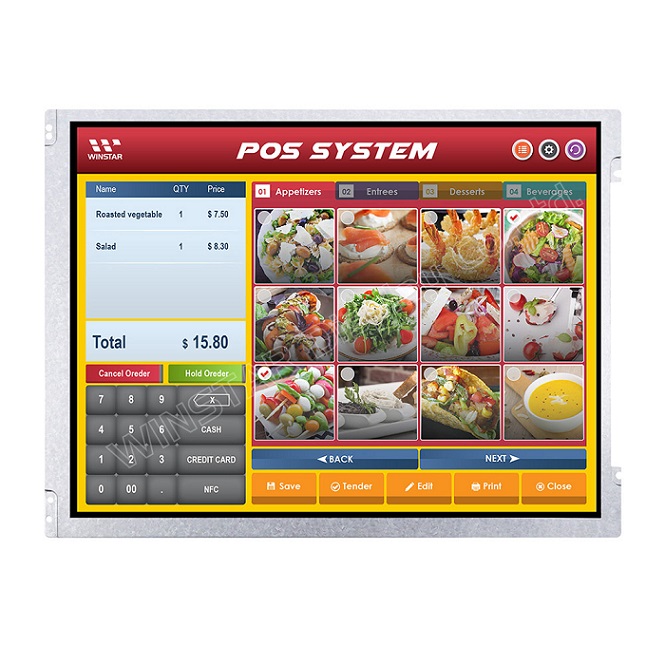

WF104FTIAMLNN0
Size (inch):
10.4
Active Area (mm):
211.2×158.4
Resolution:
1024×768
Outline Dimension (mm):
236.0×176.9
Interface:
LVDS -

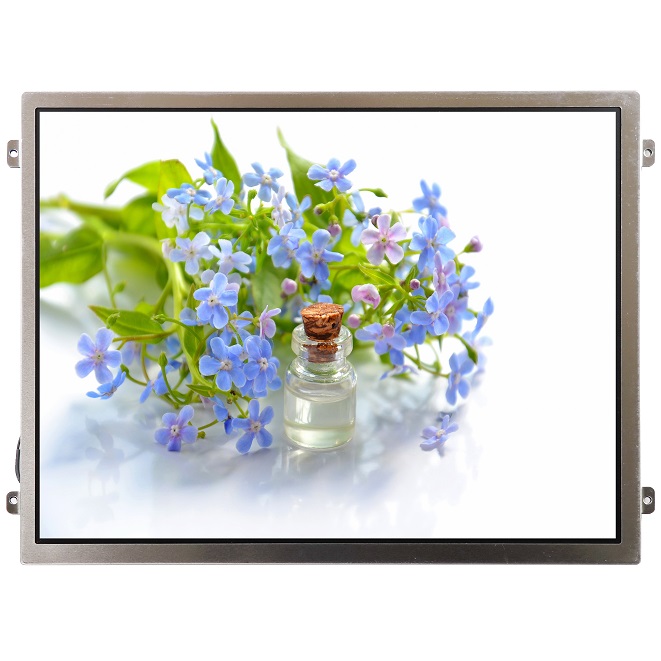

13-104GIEC0GF0-D
Size (inch):
10.4
Active Area (mm):
210.432×157.824
Resolution:
1024×768
Outline Dimension (mm):
238.6×175.8×18.6
Interface:
LVDS -
13-116HIPB0GB1-S
Size (inch):
11.6
Active Area (mm):
256.32×144.18
Resolution:
1920×1080
Outline Dimension (mm):
267.72×164.42×6.1
Interface:
eDP -

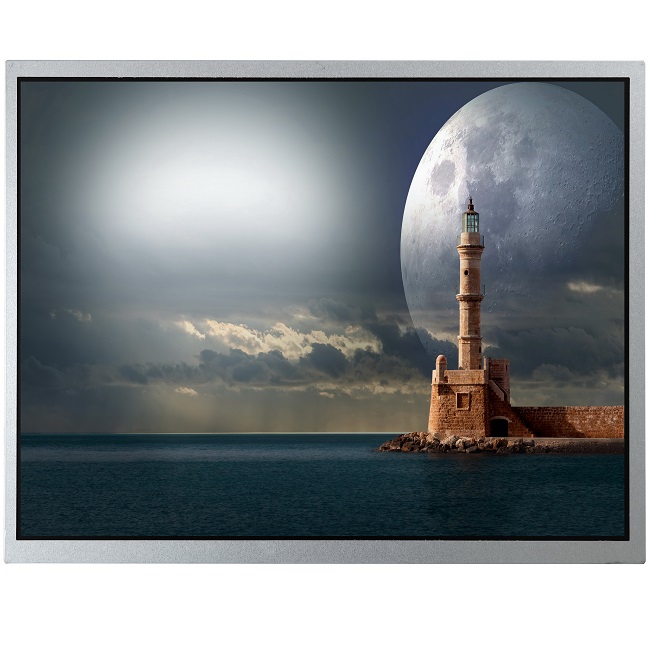

13-121GIEB0GD6-S
Size (inch):
12.1
Active Area (mm):
245.76×184.32
Resolution:
1024×768
Outline Dimension (mm):
260.5x204x8.6
Interface:
LVDS -

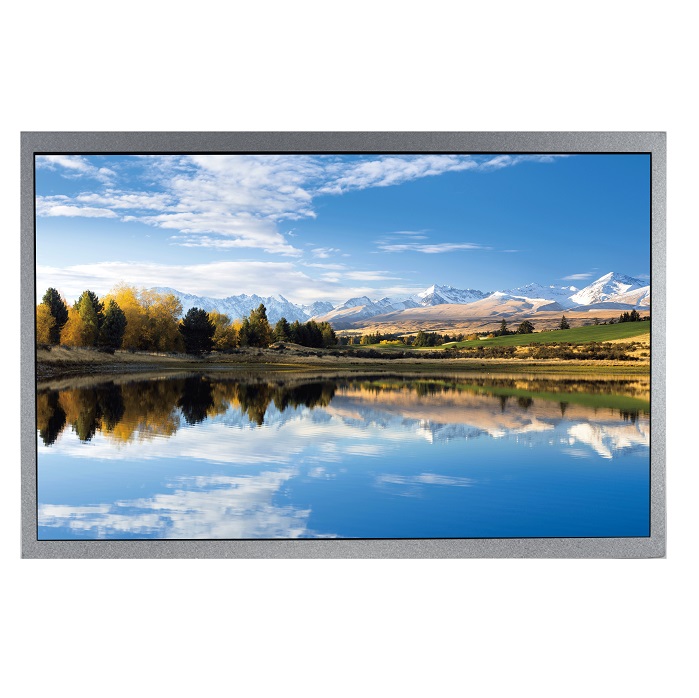

13-121ZILB00A8-S
Size (inch):
12.1
Active Area (mm):
261.12×163.2
Resolution:
1280×800
Outline Dimension (mm):
278x184x10
Interface:
LVDS
